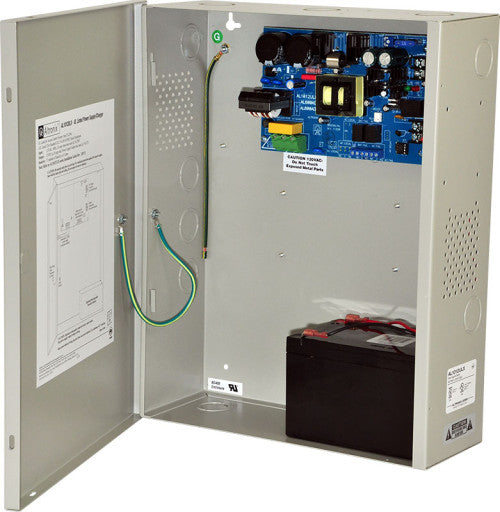

Altronix AL1012X220 | Power Supply Charger, Single Fused Output, 12VDC @ 10A, 220VAC, BC400 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to one (1) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
• 1.125" and 1.375" combination knockouts.

Input

• Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.3A.
• Input fuse rated @ 5A/250V.

Output

• 12VDC output.
• 10A continuous supply current.
• Output fuse rated @ 15A/32V.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

Visual Indicators

• AC input and DC output LED indicators.

Weights (approximate)
