Brand: Altronix
|
SKU:
10266072

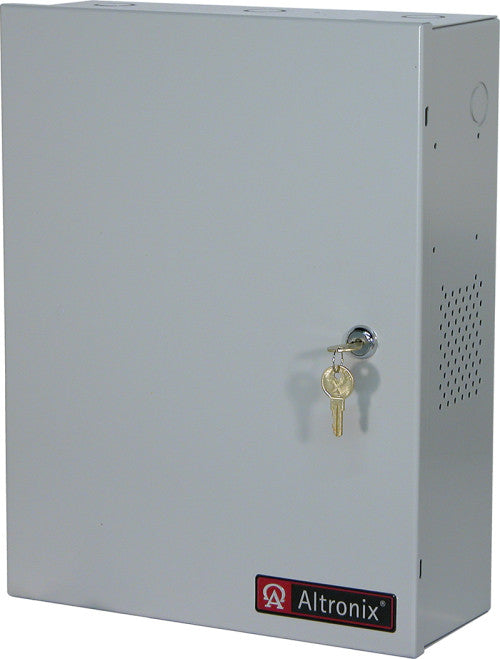

Altronix AL1024NK8 | Dual Output Power Supply/Charger, BC400 Enclosure
Regular price
$558.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL1024NK8 | Dual Output Power Supply/Charger, BC400 Enclosure
Regular price
$558.18
Unit price
Description
Description
Altronix AL1024NK8 | Dual Output Power Supply/Charger, BC400 Enclosure
Altronix AL1024NK8 converts a 115VAC 60Hz input into eight (8) fuse protected 12VDC or 24VDC outputs with a total of 10A max. Dual input design allows power to be steered fromtwo (2) factory installed independent low voltage 12 or 24VDC Altronix power supplies toeight (8) independently controlled fuse protected outputs.
Altronix AL1024NK8 converts a 115VAC 60Hz input into eight (8) fuse protected 12VDC or 24VDC outputs with a total of 10A max. Dual input design allows power to be steered fromtwo (2) factory installed independent low voltage 12 or 24VDC Altronix power supplies toeight (8) independently controlled fuse protected outputs.
Altronix - AL1024NK8 - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 115VAC, 60Hz, 4.2A max.
- Input Fuse: 5A / 250V.
- OUTPUT
- Voltage: 24VDC.
- Current: 10A @ 24VDC continuous max.
- Protection: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Capacity: 12AH /12VDC (2 within enclosure); 40 AH / 65 AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Failover: Upon AC loss, instantaneous.
- Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- PDS8 Dual Input Power Distribution Module
- INPUT
- Voltage: 12VDC or 5VDC from VR6 and 24VDC from AL1024ULXB2.
- Input Fuse: 10A / 32V.
- OUTPUT
- Voltage: 12VDC or 24VDC individually selectable.
- Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Outputs Ratings
- Fuses: 3A/32VDC.
- Indicators (LED)
- Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC.
- VR6 Voltage Regulator
- INPUT
- Voltage: 24VDC from AL1024ULXB2.
- OUTPUT
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
- Indicators LED
- Input: 24VDC is present.
- Output: Powered.
Specifications
Specifications
Altronix - AL1024NK8 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/12AH Batteries.
- Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
- 1.125" and 1.375" combination knockouts.
Altronix - AL1024NK8 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 123 BTU/Hr.
Altronix - AL1024NK8 - Specifications
| UNSPSC Code | 24102001 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - AL1024NK8 - Weights (approximate)
| Product Weight: | 9.4 Lbs. (4.26 kg). |
|---|---|
| Shipping Weight | 10.5 Lbs. (4.76 kg). |
