Brand: Altronix | SKU: 10266067

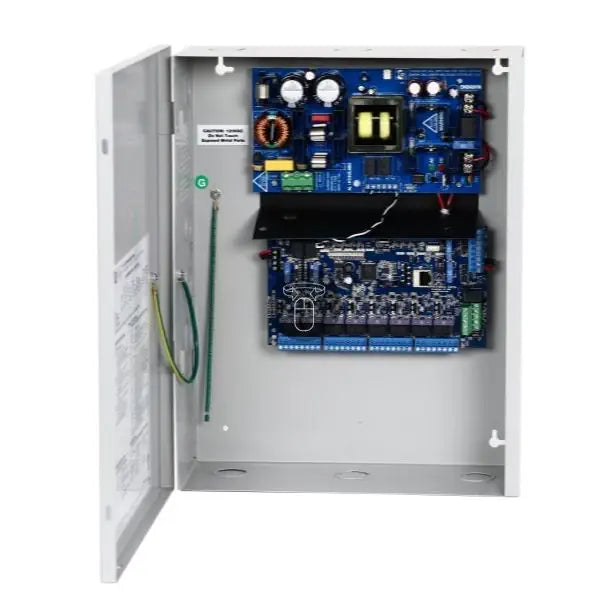

Altronix AL1024NKA8QM | Networked Dual Voltage Access Power Controller with Power Supply/Charger, BC400 Encloshure

$1,064.14
Shipping calculated at checkout.

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description
Altronix AL1024NKA8QM | Networked Dual Voltage Access Power Controller with Power Supply/Charger, BC400 Encloshure

AL1024ULXB2 Power Supply/Charger / Input
Voltage: 115VAC, 60Hz, 4.2A max.
Input Fuse: 5A / 250V.
Outputs
Voltage: 24VDC.
Current: 10A @ 24VDC continuous max.
Protection: Overvoltage protection. Filtered and regulated.
Battery Backup
Capacity: 12AH /12VDC (2 within enclosure); 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Indicators LED
Input: 115VAC is present.
DC Output: Powered.
Battery: Discharged or not connected.
VR6 Voltage Regulator / Input
Voltage: 24VDC from AL1024ULXB2.
Output
Voltage: 12VDC.
Current: 6A continuous.
Other: Surge suppression.
Indicators LED
Input: 24VDC is present.
Output: Powered.
LINQ8ACM Network Access Power Controller / Input
Voltage: 24VDC from AL1024ULXB2 and 12VDC from VR6.
Input Fuses: 15A/32V.
Outputs
Fuse protected outputs rated @ 2.5A per output, non power-limited.
Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
Output Fuses: 3A/32V.
Programming Features: / Eight (8) Programmable Outputs:
- Fail-safe, fail-secure or auxiliary outputs.
- Input controlled or manually controlled through software.
- High (over) and low (under) voltage and current monitoring by output.
- Multiple outputs may be programmed to be triggered by a single input.
- Battery back-up by output.
Eight (8) Programmable Trigger Inputs:
- Normally open (NO).
- Normally colsed (NC).
- Open collector sink inputs.
- Wet Input (5VDC - 24VDC) with 10k resistor.
- Any combination of the above.
Other Programmable Trigger Inputs:
- Monitor power supply(ies) input for voltage and currect limits (high/low).
- Input and output current calibration.
- Programmable timer events.
- Programmable user levels.
- Enable or disable alerts by type.
- Programmable alert reporting delay.
Fire Alarm Disconnect
Supervised: Inactive, latching or non-latching, individually selectable for any or all of the eight (8) outputs.
EOL: 10K Resistor.
LED Indicators
Green AC LED: indicates AC trouble condition.
Green BAT LED: indicates battery trouble condition.
Green FACP LED: indicates FACP disconnect is triggered.
Flashing Blue Heartbeat LED: indicates network connection.
Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered.
Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC.
Environmental / Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
123 BTU/Hr.

Overview

  • Altronix AL1024NKA8QM sub-assembly kit converts a 115VAC 60Hz input into eight (8) fuse protected outputs. Outputs are individually selectable, providing 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power) for access control panels, door locks, and ancillary devices. Power outputs can be converted to dry form “C” contacts. Outputs are activated by an open collector sink, normally open (NO), normally closed (NC) dry trigger input, or wet output from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. AL1024NKA8QM will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs. The spade connectors allow you to daisy chain power to multiple LINQ8ACM modules. This feature allows you to distribute the power over more outputs for larger systems. Built-in LINQTM Network Power Management facilitates monitoring, reporting and control of power/diagnostics.

Specifications

Altronix - AL1024NKA8QM - Overview

  • Altronix AL1024NKA8QM sub-assembly kit converts a 115VAC 60Hz input into eight (8) fuse protected outputs. Outputs are individually selectable, providing 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power) for access control panels, door locks, and ancillary devices. Power outputs can be converted to dry form “C” contacts. Outputs are activated by an open collector sink, normally open (NO), normally closed (NC) dry trigger input, or wet output from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. AL1024NKA8QM will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs. The spade connectors allow you to daisy chain power to multiple LINQ8ACM modules. This feature allows you to distribute the power over more outputs for larger systems. Built-in LINQTM Network Power Management facilitates monitoring, reporting and control of power/diagnostics.

Altronix - AL1024NKA8QM - Product Categories

  • Industrial
  • Electrical Enclosures
  • Electrical Enclosures

Altronix - AL1024NKA8QM - Specifications

Brand NameAltronix
Manufacturer Part NumberAL1024NKA8QM
Item DescriptionNetworked Dual Voltage Access Power Controller with Power Supply/Charger, BC400 Encloshure
Agency ListingsCE Compliant
UNSPSC Code24102001
Weights (approximate):-
Product Weight:9.4 Lbs.
(4.26 kg).Shipping Weight:
10.5 Lbs.(4.76 kg).
