Brand: Altronix
|
SKU:
507405

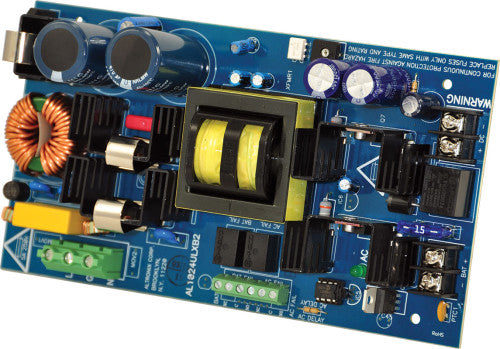

Altronix AL1024ULXB2 | Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
Regular price
$303.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL1024ULXB2 | Power Supply Charger, Single Fused Output, 2...
Regular price
$303.88
Unit price
Description
Description
Altronix AL1024ULXB2 | Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
Altronix AL1024ULXB2 UL Listed Sub-Assembly power supply/charger converts 115VAC, 60Hz input into a single 24VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision.
Altronix AL1024ULXB2 UL Listed Sub-Assembly power supply/charger converts 115VAC, 60Hz input into a single 24VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision.
Altronix - AL1024ULXB2 - Features and Specifications
- INPUT
- Input 115VAC / 60Hz, 4.2A.
- OUTPUT
- 24VDC output (UL 1481).
- 8A continuous supply current with 10A supply current during alarm (UL 1481).
- 24VDC @ 10A (UL 294).
- Filtered and electronically regulated output.
- Maximum Ripple: 250mV P/P.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Maximum charge current 3.6A.
- Automatic switch over to stand-by battery when AC fails.
- Zero voltage drop when switched over to battery backup.
Specifications
Specifications
Altronix - AL1024ULXB2 - Dimensions (approximate)
- 4.505"W x 8.4"L x 1.955"H (114.427 mm W x 213.36 mm L x 49.657 mm H).
Altronix - AL1024ULXB2 - Visual Indicators
- AC input and DC output LED indicators.
Altronix - AL1024ULXB2 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 123 BTU/Hr.
- System AC input VA requirement: 483VA.
- Mounting hardware included.
Altronix - AL1024ULXB2 - Specifications
| Amps | 5.1 TO 10.0 |
|---|---|
| Product Type | WIRE-IN POWER SUPPLY - NO ENCLOSURE |
| Battery Charging | BATTERY CHARGING CIRCUIT |
| Sales Category | POWER SUPPLY |
| Battery Type Req | SEALED LEAD ACID OR GEL |
| Input Voltage | 120V AC |
| Output Voltage | 24V DC |
| UL Listing | UL LISTED |
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - AL1024ULXB2 - Weights (approximate)
| Product Weight: | 1.15 Lbs. (0.52 kg). |
|---|---|
| Shipping Weight | 1.45 Lbs. (0.66 kg). |
