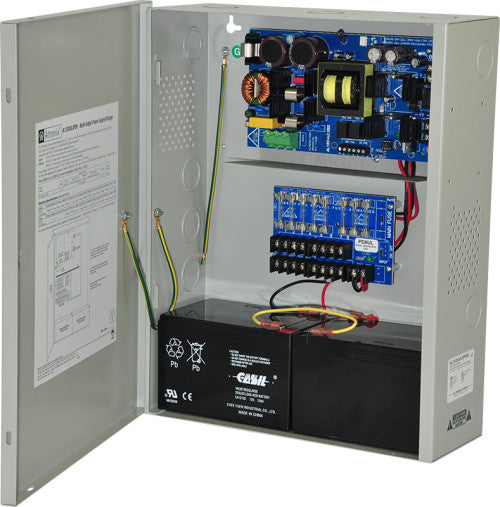

Altronix AL1024ULXPD8 | Power Supply Charger, 8 Fused Outputs, 24VDC @ 10A, 115VAC, BC400 Enclosure

$420.41 $462.45

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

AL1024ULXPD8 is a multi-output power supply/charger that converts a 115VAC, 60Hz input into eight (8) 24VDC non power limited outputs.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to two (2) 12VDC/12AH Batteries.
Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
1.125" and 1.375" combination knockouts.

Input

Input 115VAC, 60Hz, 4.2A.
Input fuse rated @ 3.5A/250V.

Output

24VDC output.
10A of continuous supply current for Access Control applications.
8A of continuous supply current for Fire Alarm applications.
Eight (8) fuse protected outputs.
Output fuses are rated @ 3.5A/250VAC.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).

Visual Indicators

AC input and DC output LED indicators.

Weights (approximate)

Product Weight	9.5 Lbs. (4.3 kg).
Shipping Weight	11.8 Lbs. (5.35 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1606
cUL Listed For: Power Supplies for Fire Protective Signaling Systems (UL1481)	https://iq.ulprospector.com/en/profile?e=153662
