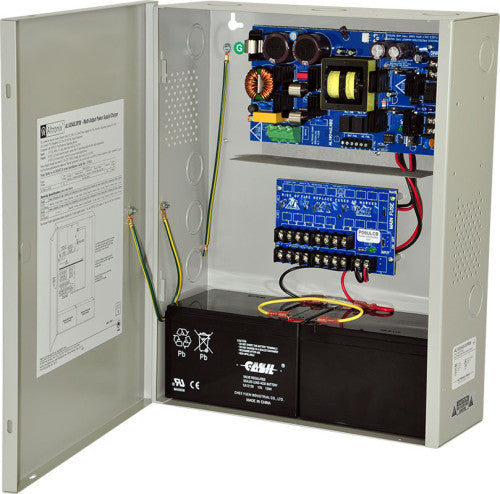

Altronix AL1024ULXPD8CB | Power Supply Charger, 8 PTC Class 2 Outputs, 24VDC @ 10A, 115VAC, BC400 Enclosure
Regular price
$425.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL1024ULXPD8CB | Power Supply Charger, 8 PTC Class 2 Outpu...
Regular price
$425.95
Unit price
Description
Description
AL1024ULXPD8CB is a multi-output power supply/charger that converts a 115VAC, 60Hz input into eight (8) 24VDC Class 2 Rated power limited outputs.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/12AH Batteries.
- Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
- 1.125" and 1.375" combination knockouts.
Input
- Input 115VAC, 60Hz, 4.2A.
- Input fuse rated @ 3.5A/250V.
Output
- 24VDC output.
- 10A of continuous supply current for
Access Control applications.
- 8A of continuous supply current for Fire Alarm applications.
- Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Weights (approximate)
| Product Weight | 9.5 Lbs. (4.3 kg). |
|---|---|
| Shipping Weight | 11.8 Lbs. (5.35 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1606 |
|---|---|
| cUL Listed For: Power Supplies for Fire Protective Signaling Systems (UL1481) | https://iq.ulprospector.com/en/profile?e=153662 |
Documents and Downloads
Documents and Downloads
- Altronix AL1024ULXPD8CB Data Sheet
- Altronix AL1024ULXPD8CB Data Sheet
- Altronix AL1024ULXPD8CB Fichas Tecnicas
- Altronix AL1024ULXPD8CB Installation Instructions
- Altronix AL1024ULXPD8CB Altronix_AL1024ULXPD8CB_Power_Supply_Guia_de_Instalacion.pdf
- Altronix AL1024ULXPD8CB CAD Drawing
- Altronix AL1024ULXPD8CB Revit File
- Altronix AL1024ULXPD8CB Lifetime Warranty
