Brand: Altronix
|
SKU:
10386520

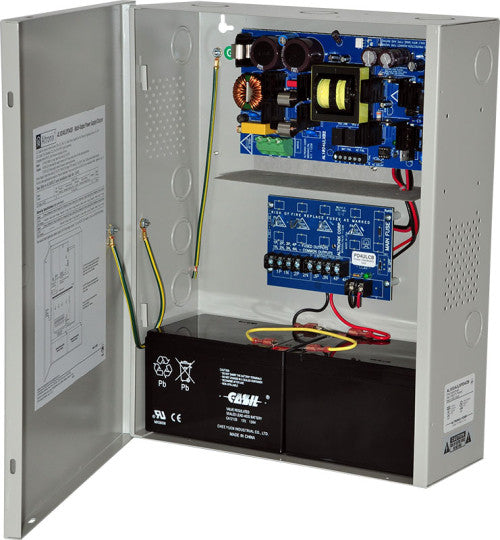

Altronix AL1024XPD4CB220 | Power Supply Charger, 4 PTC Class 2 Outputs, 24VDC @ 10A, 220VAC, BC400 Enclosure
Regular price
$422.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL1024XPD4CB220 | Power Supply Charger, 4 PTC Class 2 Outp...
Regular price
$422.13
Unit price
Description
Description
Altronix AL1024XPD4CB220 | Power Supply Charger, 4 PTC Class 2 Outputs, 24VDC @ 10A, 220VAC, BC400 Enclosure
Input fuse rated @ 3.5A/250V.
10A of continuous supply current for Access Control applications.
8A of continuous supply current for Fire Alarm applications.
Four (4) PTC protected outputs (auto-resettable).
Outputs are rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Automatic switch over to stand-by battery when AC fails.
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Storage - 20 to 70° C ( - 4 to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr. (approx.): 123 BTU/Hr.
System AC input VA requirement: 550VA.
Input
Nominal 220VAC (working range 198VAC-256VAC), 50/60Hz, 2.5A.Input fuse rated @ 3.5A/250V.
Output
24VDC output.10A of continuous supply current for Access Control applications.
8A of continuous supply current for Fire Alarm applications.
Four (4) PTC protected outputs (auto-resettable).
Outputs are rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.Automatic switch over to stand-by battery when AC fails.
Supervision
AC fail supervision (form "C" contacts).Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.Temperature
Operating 0 to 49° C (32 to 120° F ).Storage - 20 to 70° C ( - 4 to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr. (approx.): 123 BTU/Hr.
System AC input VA requirement: 550VA.
Overview
- AL1024XPD4CB220 is a multi-output power supply/charger that converts a nominal 220VAC, 50/60Hz input into four (4) 24VDC outputs.
Specifications
Specifications
Altronix - AL1024XPD4CB220 - Overview
- AL1024XPD4CB220 is a multi-output power supply/charger that converts a nominal 220VAC, 50/60Hz input into four (4) 24VDC outputs.
Altronix - AL1024XPD4CB220 - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - AL1024XPD4CB220 - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | AL1024XPD4CB220 |
| Item Description | Power Supply Charger, 4 PTC Class 2 Outputs, 24VDC @ 10A, 220VAC, BC400 Enclosure |
| Agency Listings | CE Compliant |
| Sales Category | Power Supply |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 9.4 Lbs. |
| (4.6 kg). | Shipping Weight: |
| 11.7 Lbs. | (5.3 kg). |
