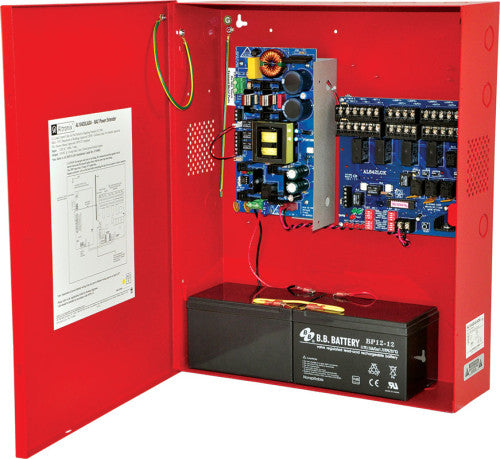

Altronix AL1042ADA220 | NAC Power Supply, 4 Class A or 4 Class B Outputs, 24VDC @ 10A, 220VAC, Red BC600 Enclosure

Altronix - AL1042ADA220 - Features and Specifications

• INPUT
• Power input 220VAC (working range 198VAC - 256VAC), 50/60 Hz, 2.2A.
• Two (2) Class A, Style Z or two (2) Class B, Style W, Y FACP inputs.
• Two (2) NC dry contact trigger inputs.
• OUTPUT
• Class 2 Rated power limited outputs.
• 24VDC voltage regulated power limited outputs.
• 10A max total alarm current.
• 2.5A max current per output.
• Two auxiliary outputs rated at 1A each (1A continuous, 1A AC disconnect).
• Programmable supervised indicating circuit outputs:
• Four (4) Class B, Style W, Y or Four (4) Class A, Style Z or Two (2) Class A, Style Z and Two (2) Class B, Style W, Y.
• Thermal and short circuit protection with auto reset.
• Battery Backup
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switchover to stand-by battery when AC fails.
• Zero voltage drop when switching over to battery backup.
• Supervision
• AC fail supervision (form "C" contact, 1A / 28VDC).
• Factory set for 30 seconds with optional 2.5 to 3 hour delay setting (field selectable).
• Instant local AC trouble reporting relay (form "C" contact, 1A / 28VDC).
• Battery presence and low battery supervision (form "C" contact, 1A / 28VDC).
