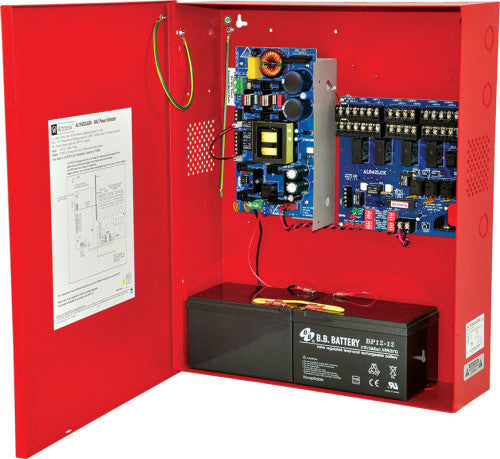

Altronix AL1042ULADA | NAC Power Supply, 4 Class A or 4 Class B Outputs, 24VDC @ 10A, 120VAC, Red BC600 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 14.5"W x 18"H x 4.62"D (368 mm W x 457 mm H x 118 mm D).
• 1/2" and 3/4" combination knockouts.

Input

• Voltage:
• 120VAC, 60Hz, 5A.
• Two (2) Class A or two (2) Class B inputs.
• Two (2) NC dry contact trigger inputs.
• Input Ratings (INP1 and INP2):
• 8-30VDC 6.5mA max from FACP.
• 12V 6.5mA, 24V 6.5mA from FACP.

Output

• Voltage:
• 24VDC power-limited outputs.
• Current:
• 10A max. total alarm current.
• 2.5A max. current per output.
• Auxiliary:
• Two auxiliary outputs rated at 1A each (1A continuous, 1A AC disconnect).
• Other:
• Thermal and short circuit protection with auto reset.
• Filtered and regulated outputs.
• Programmable Supervised Indicating Circuit Outputs:
• Four (4) Class B, or Four (4) Class A, or
• Two (2) and Two (2) Class B.

Back-up Battery (not included)

• Type: Sealed lead acid or gel type.
• Failover: Upon AC loss, instantaneous.

Supervision

• AC Failure: Form “C” contacts.
• Battery: Form “C” contacts.

Indicators (LED)

• AC Power (Green): Input voltage is present.
• DC Output (Red): Powered.
• Logic Board (Red and Green): Output status.

Weights (approximate)
