Brand: Altronix
|
SKU:
340418

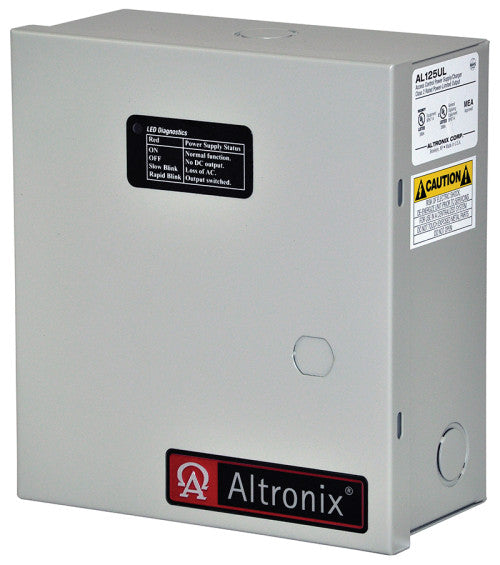

Altronix AL125UL | Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1A, 115VAC, BC100 Enclosure
Regular price
$198.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL125UL | Access Control Power Supply Charger, 2 PTC Class...
Regular price
$198.35
Unit price
Description
Description
Altronix AL125UL Series power-limited Power Supply/Chargers convert 115VAC 50/60Hz input into two individually PTC protected 12VDC or 24VDC outputs (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Input 115VAC, 50/60Hz, 0.6A.
- Access control trigger input.
Output
- 12VDC or 24VDC selectable outputs.
- 1A supply current.
- Two (2) Class 2 Rated power limited outputs.
- Fail-Safe/Fail-Secure lock output (switched).
- Auxiliary power output (unswitched).
- PTC protected outputs, rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
Indicator (LED)
- Unit Status: Normal / No Output / Loss of AC / Triggered.
Weights (approximate)
| Product Weight | 5.1 Lbs. (2.31 kg). |
|---|---|
| Shipping Weight | 5.6 Lbs. (2.54 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1521 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment | https://iq.ulprospector.com/en/profile?e=152141 |
Documents and Downloads
Documents and Downloads
- Altronix AL125UL Data Sheet
- Altronix AL125UL Data Sheet
- Altronix AL125UL Fichas Tecnicas
- Altronix AL125UL Installation Instructions
- Altronix AL125UL Altronix_AL125UL_Access_Control_Power_Supply_Installation_Instructions_prior_to_Feb._6,_2015.pdf
- Altronix AL125ULGuia de Instalacion
- Altronix AL125UL Lifetime Warranty
