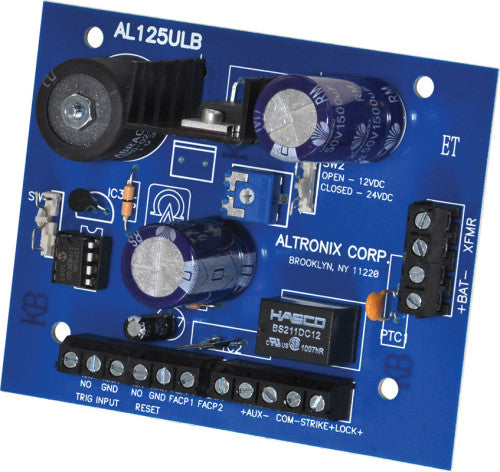

Altronix AL125ULB | Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1A, 24VAC, Board

Dimensions (approximate)

• 3.5"W x 3.9"L x 1.4"H (88.9 mm W x 99.6 mm L x 35.56 mm H).

Input

• 24VAC, 40VA from UL Listed, Class 2 transformer.
• Access control trigger input.

Output

• 12VDC or 24VDC selectable outputs.
• 1A supply current.
• Two (2) Class 2 Rated power limited outputs.
• Fail-Safe/Fail-Secure lock output (switched).
• Auxiliary power output (unswitched).
• PTC protected outputs, rated @ 2.5A.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Indicator (LED)

• Unit Status: Normal / No Output / Loss of AC / Triggered.

Weights (approximate)
