Brand: Altronix
|
SKU:
10386586

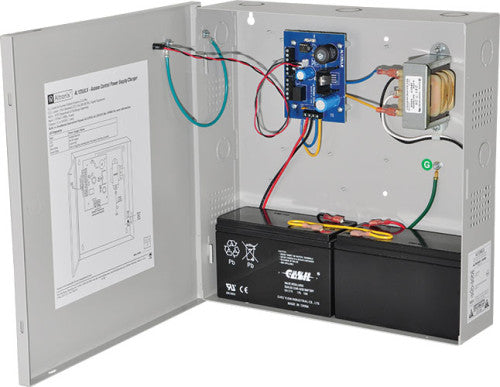

Altronix AL125X220 | Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1A, 220VAC, BC300 Enclosure
Regular price
$244.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL125X220 | Access Control Power Supply Charger, 2 PTC Cla...
Regular price
$244.13
Unit price
Description
Description
Altronix AL125X220 | Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1A, 220VAC, BC300 Enclosure
Access control trigger input.
1A supply current.
Two (2) outputs.
Fail-Safe/Fail-Secure lock output (switched).
Auxiliary power output (unswitched).
PTC protected outputs, rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Automatic switch over to stand-by battery when AC fails.
Storage - 20° C to 70ºC ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
24VDC: 6 or 12 BTU/Hr.
System AC input VA requirement: 66VA.
Accommodates up to two (2) 12VDC/7AH Batteries.
Dimensions
13"W
x
13.5"H
x
3.25"D
(330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.
9.5 Lbs.
(4.31 kg).
Shipping Weight:
10.4 Lbs.
(4.72 kg).
Input
Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.3A.Access control trigger input.
Output
12VDC or 24VDC selectable outputs.1A supply current.
Two (2) outputs.
Fail-Safe/Fail-Secure lock output (switched).
Auxiliary power output (unswitched).
PTC protected outputs, rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.Automatic switch over to stand-by battery when AC fails.
Supervision
Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).Indicator (LED)
Unit Status: Normal / No Output / Loss of AC / Triggered.Temperature
Operating 0° C to 49° C (32° F to 120° F).Storage - 20° C to 70ºC ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 6 BTU/Hr.24VDC: 6 or 12 BTU/Hr.
System AC input VA requirement: 66VA.
Enclosure:
Wall mount enclosure for indoor use.Accommodates up to two (2) 12VDC/7AH Batteries.
Dimensions
13"W
x
13.5"H
x
3.25"D
(330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.
Weights (approximate):
Product Weight:9.5 Lbs.
(4.31 kg).
Shipping Weight:
10.4 Lbs.
(4.72 kg).
Overview
- Altronix AL125X220 Series power-limited Power Supply/Chargers convert 220VAC (working range 198VAC - 256VAC) 50/60Hz input into two individually PTC protected 12VDC or 24VDC outputs (see specifications). They are intended for use in Access Control and applications requiring an interface with Fire Alarm Control Panels.
Specifications
Specifications
Altronix - AL125X220 - Overview
- Altronix AL125X220 Series power-limited Power Supply/Chargers convert 220VAC (working range 198VAC - 256VAC) 50/60Hz input into two individually PTC protected 12VDC or 24VDC outputs (see specifications). They are intended for use in Access Control and applications requiring an interface with Fire Alarm Control Panels.
Altronix - AL125X220 - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - AL125X220 - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | AL125X220 |
| Item Description | Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1A, 220VAC, BC300 Enclosure |
| Sales Category | Power Supply |
| Fire Alarm Zones | 2 |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 9.5 Lbs. |
| (4.31 kg). | Shipping Weight: |
| 10.4 Lbs. | (4.72 kg). |
