Brand: Altronix
|
SKU:
552830

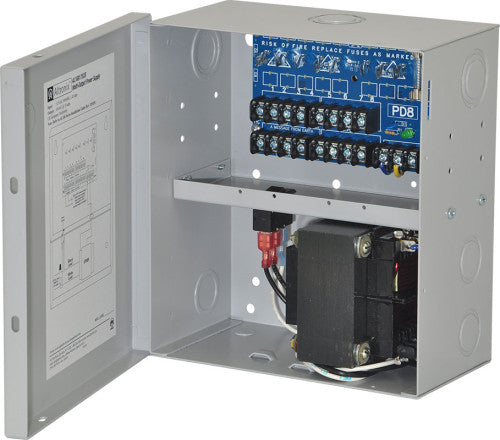

Altronix AL168175CB | Power Supply, 8 PTC Outputs, 16VAC @ 10A, 115VAC, BC100M Enclosure
Regular price
$297.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL168175CB | Power Supply, 8 PTC Outputs, 16VAC @ 10A, 115...
Regular price
$297.53
Unit price
Description
Description
AL168175CB Multi-Output Power Supply provides 16VAC distributed via eight (8) PTC protected outputs for powering multiple security system or access control panels.
Main Features
- Illuminated master power disconnect circuit breaker with manual reset.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.5"W x 8.5"H x 3.875"D (190.5 mm W x 216 mm H x 98.5 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Input 115VAC, 50/60Hz, 1.45A.
Output
- Eight (8) auto-resettable PTC protected outputs.
- 16VAC output.
- 16VAC @ 10A (175VA) supply current (1.25A per device, 2.5A max.)
- Outputs are rated @ 2.5A.
- Main fuse rated @ 15A/32V.
- Surge suppression.
Visual Indicators
- AC power LED indicators.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 82 BTU/Hr.
- System AC input VA requirement: 166.75VA.
Weights (approximate)
| Product Weight | 8.15 Lbs. (3.7 kg). |
|---|---|
| Shipping Weight | 9.15 Lbs. (4.17 kg). |
