Brand: Altronix | SKU: 478288

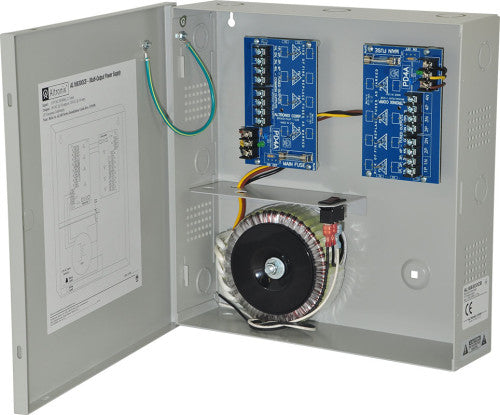

Altronix AL168300CB | Power Supply, 8 PTC Outputs, 16VAC @ 18A, 115VAC, BC300 Enclosure

$448.82

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

AL168300CB Multi-Output Power Supply provides 16VAC or 18VAC distributed via eight (8) PTC protected outputs for powering multiple security system or access control panels.

Main Features

Illuminated master power disconnect circuit breaker with manual reset.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

Input 115VAC, 50/60Hz, 2.7A.

Output

Eight (8) auto-resettable PTC protected outputs.
16VAC or 18VAC output.
16VAC @ 18A (300VA) supply current (2.25A per device, 2.5A max.) or 18VAC @ 16A (300VA) supply current (2A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Main fuse rated @ 15A/32V.
Surge suppression.

Visual Indicators

AC power LED indicators.

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 147 BTU/Hr.
System AC input VA requirement: 310.5VA.

Weights (approximate)

Product Weight	16.9 Lbs. (7.665 kg).
Shipping Weight	18.1 Lbs. (8.21 kg).
