Altronix AL168CB | Power Supply, 8 PTC Outputs, 16VAC @ 6A, 115VAC, BC100 Enclosure
Sale price
$224.35
Regular price
$246.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL168CB | Power Supply, 8 PTC Outputs, 16VAC @ 6A, 115VAC,...
Sale price
$224.35
Regular price
$246.79
Unit price
Brand: Altronix
|
SKU:
552833
Sale price
$224.35
Regular price
$246.79
Unit price
Shipping calculated at checkout.
Description
Description

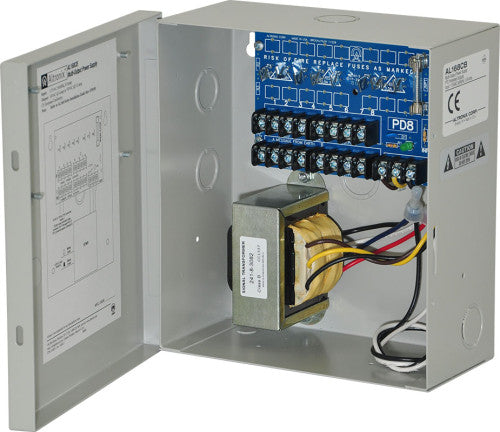

AL168CB Multi-Output Power Supply provides 16VAC or 18VAC distributed via eight (8) PTC protected outputs for powering multiple security system or access control panels.
Main Features
- Illuminated master power disconnect circuit breaker with manual reset.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Input 115VAC, 50/60Hz, 0.9A.
Output
- Eight (8) auto-resettable PTC protected outputs.
- 16VAC or 18VAC output.
- 16VAC @ 6A (100VA) supply current (0.75A per device, 2.5A max.) or 18VAC @ 5.5A (100VA) supply current (0.6875A per device, 2.5A max.).
- Outputs are rated @ 2.5A.
- Main fuse rated @ 10A/250V.
- Surge suppression.
Visual Indicators
- AC power LED indicators.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.):
- 16VAC: 49 BTU/Hr.
- 18VAC: 51 BTU/Hr.
- System AC input VA requirement: 103.5VA.
Weights (approximate)
| Product Weight | 6 Lbs. (2.7 kg). |
|---|---|
| Shipping Weight | 7 Lbs. (3.18 kg). |
