Brand: Altronix
|
SKU:
231022

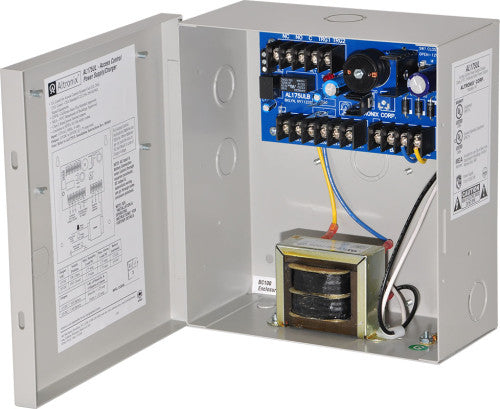

Altronix AL175UL | Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1.75A, 115VA, BC100 Enclosure
Regular price
$194.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL175UL | Access Control Power Supply Charger, 2 PTC Class...
Regular price
$194.31
Unit price
Description
Description
Altronix AL175UL Switching Power Supply/Charger converts a 115VAC 60Hz input into two (2) individually PTC protected 12VDC or 24VDC outputs.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Input 115VAC, 60Hz, 0.6A.
- Access control trigger input.
Output
- 12VDC or 24VDC selectable outputs.
- 1.75A supply current.
- Two (2) Class 2 Rated power limited outputs.
- Fail-Safe/Fail-Secure lock output (switched).
- Auxiliary power output (unswitched).
- PTC protected outputs, rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 5.1 Lbs. (2.31 kg). |
|---|---|
| Shipping Weight | 5.6 Lbs. (2.54 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1521 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment | https://iq.ulprospector.com/en/profile?e=152141 |
Documents and Downloads
Documents and Downloads
- Altronix AL175UL Data Sheet
- Altronix AL175UL Data Sheet
- Altronix AL175UL Fichas Tecnicas
- Altronix AL175UL Installation Instructions
- Altronix AL175UL Altronix_AL175UL_Access_Control_Power_Supply_Installation_Instructions_prior_to_Feb._18,_2015.pdf
- Altronix AL175ULGuia de Instalacion
- Altronix AL175UL CAD Drawing
- Altronix AL175UL Lifetime Warranty
