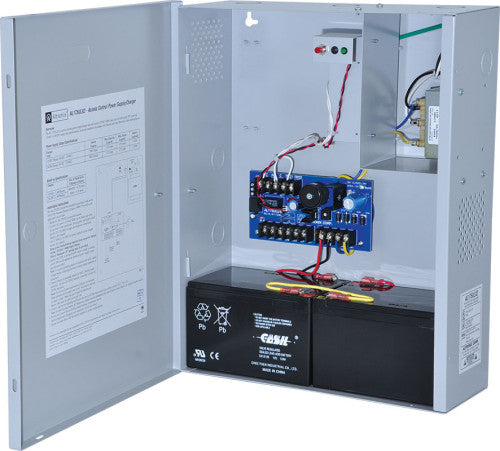

Altronix AL175ULX2 | Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1.75A, 115VAC, BC400 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
• 1.125" and 1.375" combination knockouts.

Input

• Input 115VAC, 60Hz, 0.6A.
• Access control trigger input.

Output

• 12VDC or 24VDC selectable outputs.
• 1.75A supply current.
• Two (2) Class 2 Rated power limited outputs.
• Fail-Safe/Fail-Secure lock output (switched).
• Auxiliary power output (unswitched).
• PTC protected outputs, rated @ 2.5A.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• AC fail supervision (form "C" contacts).
• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Visual Indicators

• AC input and DC output LED indicators.

Weights (approximate)

Agency Listings
