Brand: Altronix
|
SKU:
427574

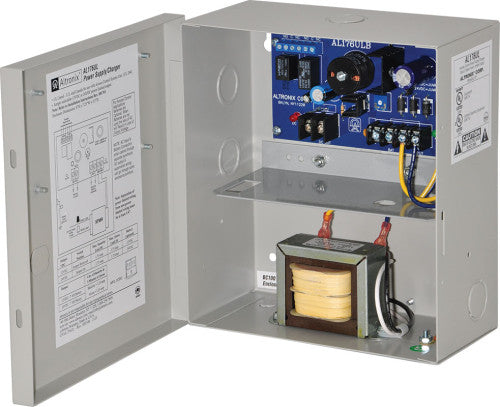

Altronix AL176UL | Access Control Power Supply Charger, Single PTC Class 2 Output, 12/24VDC @ 1.75A, 115VAC, BC100 Enclosure
Regular price
$194.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL176UL | Access Control Power Supply Charger, Single PTC ...
Regular price
$194.54
Unit price
Description
Description
Altronix AL176UL is a Single Output Power Supply/Charger that converts a 115VAC 50/60Hz input into a PTC protected 12VDC or 24VDC output.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Input 115VAC/60Hz, 0.6A.
Output
- 12VDC or 24VDC selectable output.
- 1.75A supply current.
- Class 2 Rated power limited output.
- PTC protected outputs, rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 5.1 Lbs. (2.31 kg). |
|---|---|
| Shipping Weight | 5.6 Lbs. (2.54 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1521 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment | https://iq.ulprospector.com/en/profile?e=152141 |
