Brand: Altronix | SKU: 477314

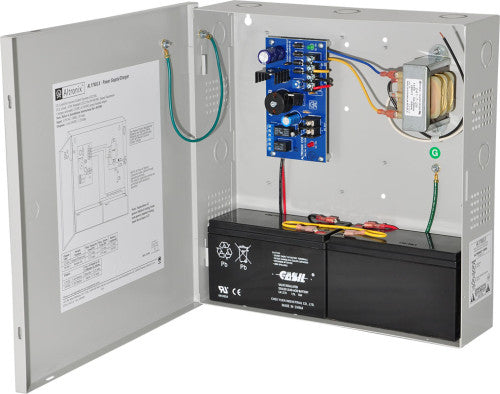

Altronix AL176ULX | Access Control Power Supply Charger, Single PTC Class 2 Output, 12/24VDC @ 1.75A, 115VAC, BC300 Enclosure

$239.04

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix AL176ULX is a single output Power Supply/Charger that converts a 115VAC 50/60Hz input into a PTC protected 12VDC or 24VDC output.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to two (2) 12VDC/7AH Batteries.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

Input 115VAC/60Hz, 0.6A.

Output

12VDC or 24VDC selectable output.
1.75A supply current.
Class 2 Rated power-limited output.
PTC protected output, rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.

Supervision

AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).

Visual Indicators

AC input and DC output LED indicators.

Weights (approximate)

Product Weight	8.4 Lbs. (3.81 kg).
Shipping Weight	9.4 Lbs. (4.26 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1521
cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment	https://iq.ulprospector.com/en/profile?e=152141

Documents and Downloads
