Brand: Altronix
|
SKU:
243296

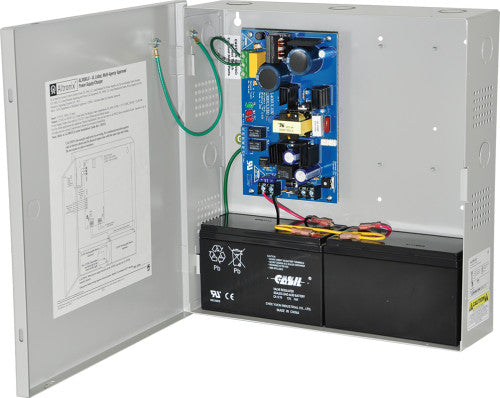

Altronix AL300ULX | Power Supply Charger, Single Class 2 Output, 12/24VDC 2.5A, 115VAC, BC300 Enclosure
Regular price
$272.25
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL300ULX | Power Supply Charger, Single Class 2 Output, 12...
Regular price
$272.25
Unit price
Description
Description
Altronix AL300ULX | Power Supply Charger, Single Class 2 Output, 12/24VDC 2.5A, 115VAC, BC300 Enclosure
AL300ULX is a power supply/charger that converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.
Altronix - AL300ULX - Features
- Fused or PTC protected outputs- Supervision
- AC Fail
- Battery Fail and Battery Presence
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries- Short circuit and overload protection
- AC input and DC output options- UL Listed in the U.S. and Canada- CSFM and MEA Approved
- Lifetime Warranty
- All units are available in grey or red enclosure
Specifications
Specifications
Altronix - AL300ULX - Specifications
| Input Voltage | 115VAC, 60Hz, 3.5A max. |
|---|---|
| Outputs Voltage | 12VDC or 24VDC selectable |
| Battery Charging Capacity | 7AH/12VDC (1 or 2 within enclosure) |
| Type | Sealed lead acid or gel type |
| Supervision AC Failure | Form "C" contacts |
| Indicators (LED) Input | 115VAC is present |
| Dimensions (H x W x D) | 13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm) |
| Product Weight | 6.65 lb. (3.1 kg) |
| Operating Temperature | 0ºC to 49ºC (32ºF to 120ºF) |
| Relative Humidity | 85% +/– 5% |
| BTU/Hr (approx.) | 12VDC: 17 BTU/Hr. |
