Brand: Altronix
|
SKU:
10216315
Altronix AL300ULXJG | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 2.5A, 115VAC, Red BC600G Enclosure
Regular price
$355.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL300ULXJG | Power Supply Charger, Single Class 2 Output, ...
Regular price
$355.63
Unit price
Description
Description
Altronix AL300ULXJG | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 2.5A, 115VAC, Red BC600G Enclosure
AL300ULXJG is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.
AL300ULXJG is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.
Altronix - AL300ULXJG - Features and Specifications
- INPUT
- Input 115VAC, 60Hz, 3.5A.
- Input fuse rated @ 3.5A/250V.
- OUTPUT
- 12VDC or 24VDC selectable output.
- Burglar Alarm Applications (UL 603):
- 12VDC = 10VDC-13.2VDC.
- 24VDC = 20VDC-26.4VDC.
- 12VDC or 24VDC @ 2.5A supply current.
- Class 2 Rated power limited output.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Specifications
Specifications

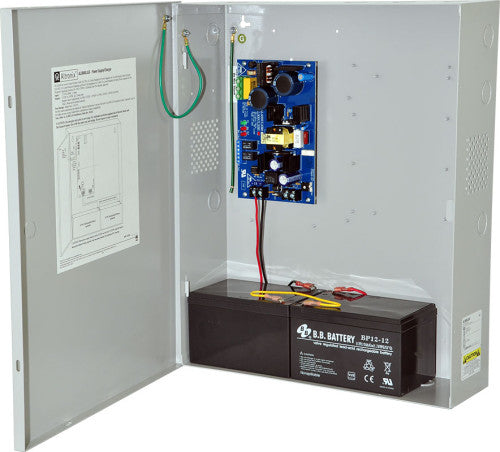

Altronix - AL300ULXJG - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/12AH Batteries.
- Dimensions 14.5"W x 18"H x 4.62"D (368 mm W x 457 mm H x 118 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - AL300ULXJG - Visual Indicators
- AC input, DC output and Battery LED indicators.
Altronix - AL300ULXJG - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 15 BTU/Hr.
- 24VDC: 31 BTU/Hr.
- System AC input VA requirement: 402.5VA.
Altronix - AL300ULXJG - Specifications
| Fire Alarm Zones | 2 |
|---|---|
| Sales Category | POWER SUPPLY |
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - AL300ULXJG - Weights (approximate)
| Product Weight: | 11.5 Lbs. (5.22 kg). |
|---|---|
| Shipping Weight | 13.7 Lbs. (6.21 kg). |
