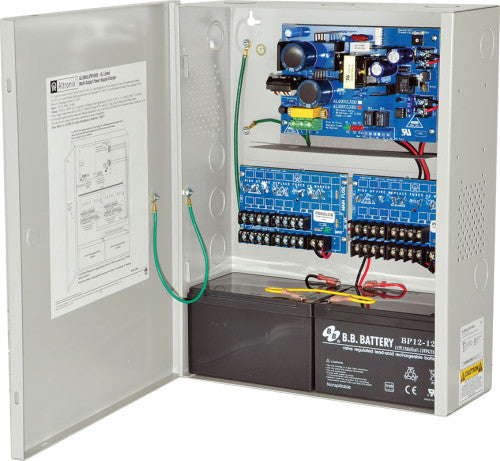

Altronix AL300ULXPD16CB | Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC @ 2.5A, 115VAC, BC400 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
• 1.125" and 1.375" combination knockouts.

Input

• Input 115VAC, 60Hz, 3.5A.
• Input fuse rated @ 3.5A/250V.

Output

• 12VDC or 24VDC selectable output.
• Burglar Alarm Applications (UL 603):
• 12VDC = 10VDC-13.2VDC.
• 24VDC = 20VDC-26.4VDC.
• 12VDC or 24VDC @ 2.5A supply current.
• Sixteen (16) Class 2 Rated PTC protected power limited outputs (auto-resettable).
• Outputs are rated @ 2.5A.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

Visual Indicators

• AC input, DC output and Battery LED indicators.

Weights (approximate)

Agency Listings
