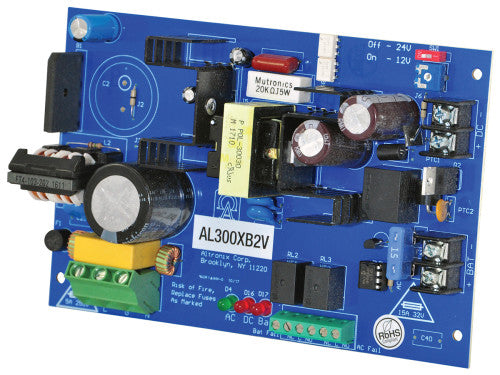

Altronix AL300XB2V | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 2.5A, 220VAC, Board

Altronix AL300XB2V | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 2.5A, 220VAC, Board

Input

Nominal 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.5A.
Input fuse rated @ 5A/250V.

Output

12VDC or 24VDC selectable output.
12VDC or 24VDC @ 2.5A supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).

Visual Indicators

AC input, DC outputand Battery LED indicators.

Electrical / Temperature:

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):

12VDC: 15 BTU/Hr.
24VDC: 31 BTU/Hr.
System AC input VA requirement: 374VA.

Dimensions (approximate):

4.5"W
x
7.1"L
x
1.44"H
(114 mm W x 180 mm L x 37 mm H).

Weights (approximate):

Product Weight:
0.65 Lbs.
(0.29 kg).
Shipping Weight:
0.8 Lbs.
(0.36 kg).
