Brand: Altronix
|
SKU:
10078457

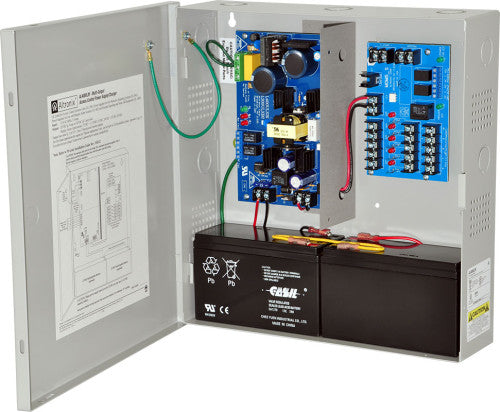

Altronix AL400M220 | Access Power Distribution Module with Power Supply/Charger, 5 PTC Class 2 Outputs, 12VDC @ 4A or 24VDC @ 3A, FAI, 220VAC, BC300 Enclosure
Regular price
$325.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL400M220 | Access Power Distribution Module with Power Su...
Regular price
$325.50
Unit price
Description
Description
Altronix AL400M220 | Access Power Distribution Module with Power Supply/Charger, 5 PTC Class 2 Outputs, 12VDC @ 4A or 24VDC @ 3A, FAI, 220VAC, BC300 Enclosure
AL400M220 is specifically designed for use with access control systems and accessories. This units converts a 220VAC, 60Hz input into five (5) individually protected 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or may be used to trigger auxiliary devices.
AL400M220 is specifically designed for use with access control systems and accessories. This units converts a 220VAC, 60Hz input into five (5) individually protected 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or may be used to trigger auxiliary devices.
Altronix - AL400M220 - Features and Specifications
- INPUT
- Input 220VAC, 60Hz, 1.2A.
- Input fuse rated @ 3.5A/250V.
- Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input.
- OUTPUT
- 12VDC or 24VDC selectable outputs.
- 12VDC @ 4A or 24VDC @ 3A supply current.
- Five (5) (auto-resettable) PTC protected outputs, rated @ 2A.
- Output relay energizes when unit is triggered (form "C" contact rated 1A @ 28VDC).
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
- Power fail supervision relay (form "C" contacts).
Specifications
Specifications
Altronix - AL400M220 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - AL400M220 - Visual Indicators
- AC input and DC output LED indicators (power supply board).
- Red LEDs indicate condition of power outputs (multi-output board).
- Power & input trigger LEDs (multi-output board).
Altronix - AL400M220 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 25 BTU/Hr.
- 24VDC: 37 BTU/Hr.
- System AC input VA requirement: 176VA.
Altronix - AL400M220 - Specifications
| UNSPSC Code | 39120000 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - AL400M220 - Weights (approximate)
| Product Weight: | 7.6 Lbs. (3.45 kg). |
|---|---|
| Shipping Weight | 8.6 Lbs. (3.9 kg). |
