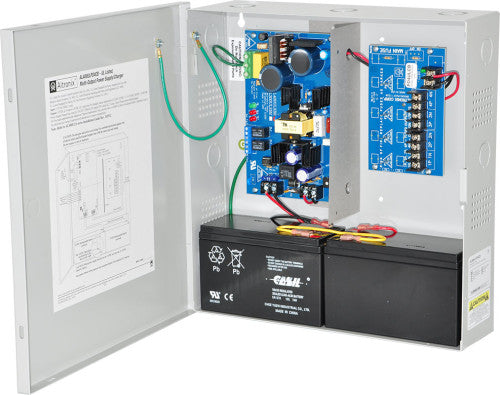

Altronix AL400ULPD4CB | Power Supply Charger, 4 PTC Class 2 Outputs, 12/24VDC @ 4A, 115VAC, BC300 Enclosure
Regular price
$293.71
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL400ULPD4CB | Power Supply Charger, 4 PTC Class 2 Outputs...
Regular price
$293.71
Unit price
Description
Description
AL400ULPD4CB is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) Class 2 Rated 12VDC or 24VDC power limited outputs.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Input 115VAC, 60Hz, 3.5A.
- Input fuse rated @ 3.5A/250V.
Output
- 12VDC or 24VDC selectable output.
- 12VDC @ 4A or 24VDC @ 3A supply current.
- Four (4) Class 2 Rated PTC protected powerlimited outputs (auto-resettable).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 7.1 Lbs. (3.22 kg). |
|---|---|
| Shipping Weight | 8.9 Lbs. (4.04 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1606 |
|---|---|
| cUL Listed For: Power Supplies for use with Burglar Alarm Systems (UL603) | https://iq.ulprospector.com/en/profile?e=2087 |
Documents and Downloads
Documents and Downloads
- Altronix AL400ULPD4CB Data Sheet
- Altronix AL400ULPD4CB Data Sheet
- Altronix AL400ULPD4CB Fichas Tecnicas
- Altronix AL400ULPD4CB Installation Instructions
- Altronix AL400ULPD4CB Altronix_AL400ULPD4CB_Power_Supply_Installation_Instructions_prior_to_Feb._27,_2015.pdf
- Altronix AL400ULPD4CBInstallation Instructions prior to Dec. 3, 2012
- Altronix AL400ULPD4CB Guia de Instalacion
- Altronix AL400ULPD4CB CAD Drawing
- Altronix AL400ULPD4CB Revit File
- Altronix AL400ULPD4CB Lifetime Warranty
