Brand: Altronix
|
SKU:
10216303

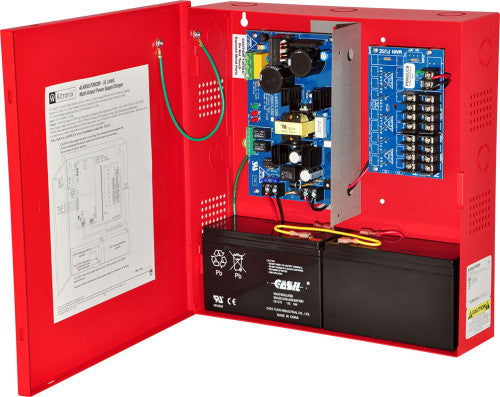

Altronix AL400ULPD8CBR | Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC @ 4A, 115VAC, Red BC300 Enclosure
Regular price
$311.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL400ULPD8CBR | Power Supply Charger, 8 PTC Class 2 Output...
Regular price
$311.64
Unit price
Description
Description
Altronix AL400ULPD8CBR | Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC @ 4A, 115VAC, Red BC300 Enclosure
AL400ULPD8CBR is a multi-output power supply/charger that converts a 115VAC/60Hz input into eight (8) Class 2 Rated 12VDC or 24VDC power limited outputs.
AL400ULPD8CBR is a multi-output power supply/charger that converts a 115VAC/60Hz input into eight (8) Class 2 Rated 12VDC or 24VDC power limited outputs.
Altronix - AL400ULPD8CBR - Features and Specifications
- INPUT
- Input 115VAC, 60Hz, 3.5A.
- Input fuse rated @ 3.5A/250V.
- OUTPUT
- 12VDC or 24VDC selectable output.
- 12VDC @ 4A or 24VDC @ 3A supply current.
- Eight (8) Class 2 Rated PTC protected powerlimited outputs (auto-resettable).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Specifications
Specifications
Altronix - AL400ULPD8CBR - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - AL400ULPD8CBR - Visual Indicators
- AC input and DC output LED indicators.
Altronix - AL400ULPD8CBR - Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 25 BTU/Hr.
- 24VDC: 37 BTU/Hr.
- System AC input VA requirement: 402.5VA.
Altronix - AL400ULPD8CBR - Specifications
| Sales Category | POWER SUPPLY |
|---|---|
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - AL400ULPD8CBR - Weights (approximate)
| Product Weight: | 7.2 Lbs. (3.27 kg). |
|---|---|
| Shipping Weight | 9 Lbs. (4.08 kg). |
