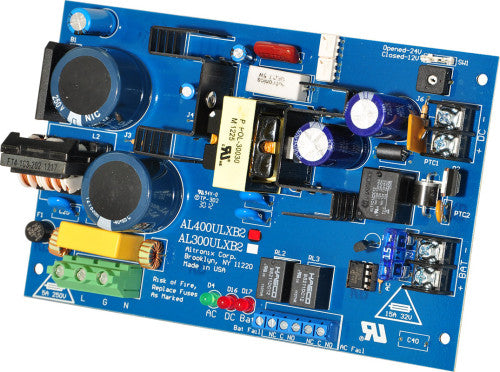

Altronix AL400ULXB2 | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 4A, 115VAC, Board
Regular price
$214.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL400ULXB2 | Power Supply Charger, Single Class 2 Output, ...
Regular price
$214.88
Unit price
Description
Description
Altronix AL400ULXB2 UL Listed Sub-Assembly power supply/charger converts a 115VAC, 60Hz input into a single 12VDC or 24VDC Class 2 Rated power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision.
Specifications
Specifications
Dimensions (approximate)
- 4.5"W x 7.1"L x 1.44"H (114 mm W x 180 mm L x 37 mm H).
Input
- Input 115VAC, 60Hz, 3A.
- Input fuse rated @ 3.5A/250V.
Output
- 12VDC or 24VDC selectable output.
- 12VDC @ 4A or 24VDC @ 3A supply current.
- Class 2 Rated power limited output.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Visual Indicators
- AC input, DC outputand Battery LED indicators.
Weights (approximate)
| Product Weight | 0.65 Lbs. (0.29 kg). |
|---|---|
| Shipping Weight | 0.8 Lbs. (0.36 kg). |
Agency Listings
| UL Listed For: Power Supplies for Fire Protective Signaling Systems (UL1481) | https://iq.ulprospector.com/en/profile?e=153662 |
|---|---|
| cUL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1606 |
Documents and Downloads
Documents and Downloads
- Altronix AL400ULXB2 Data Sheet
- Altronix AL400ULXB2 Data Sheet
- Altronix AL400ULXB2 Fichas Tecnicas
- Altronix AL400ULXB2 Installation Instructions
- Altronix AL400ULXB2 Altronix_AL400ULXB2_Power_Supply_Installation_Instructions_prior_to_Feb._27,_2015.pdf
- Altronix AL400ULXB2Guia de Instalacion
- Altronix AL400ULXB2 CAD Drawing
- Altronix AL400ULXB2 Lifetime Warranty
