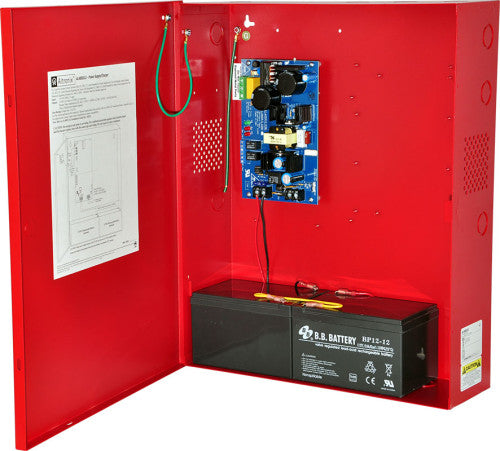

Altronix AL400ULXJ | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 4A, 115VAC, Red BC600 Enclosure
Regular price
$369.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL400ULXJ | Power Supply Charger, Single Class 2 Output, 1...
Regular price
$369.99
Unit price
Description
Description
Altronix AL400ULXJ | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 4A, 115VAC, Red BC600 Enclosure
AL400ULXJ is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.
AL400ULXJ is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.
Altronix - AL400ULXJ - Features and Specifications
- INPUT
- Input 115VAC, 60Hz, 3.5A.
- Input fuse rated @ 3.5A/250V.
- OUTPUT
- 12VDC or 24VDC selectable output.
- 12VDC @ 4A or 24VDC @ 3A supply current.
- Class 2 Rated power-limited output.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Specifications
Specifications
Altronix - AL400ULXJ - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/12AH Batteries.
- Dimensions 14.5"W x 18"H x 4.62"D (368 mm W x 457 mm H x 118 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - AL400ULXJ - Visual Indicators
- AC input and DC output LED indicators.
Altronix - AL400ULXJ - Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 25 BTU/Hr.
- 24VDC: 37 BTU/Hr.
- System AC input VA requirement: 402.5VA.
Altronix - AL400ULXJ - Specifications
| UNSPSC Code | 39120000 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - AL400ULXJ - Weights (approximate)
| Product Weight: | 11.5 Lbs. (5.22 kg). |
|---|---|
| Shipping Weight | 13.7 Lbs. (6.21 kg). |
