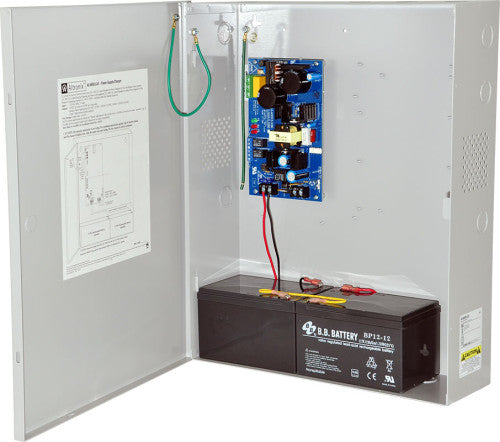

Altronix AL400ULXJG | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 4A, 115VAC, BC600G Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 14.5"W x 18"H x 4.62"D (368 mm W x 457 mm H x 118 mm D).
• 1/2" and 3/4" combination knockouts.

Input

• Input 115VAC, 60Hz, 3.5A.
• Input fuse rated @ 3.5A/250V.

Output

• 12VDC or 24VDC selectable output.
• 12VDC @ 4A or 24VDC @ 3A supply current.
• Class 2 Rated power-limited output.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

Visual Indicators

• AC input and DC output LED indicators.

Weights (approximate)

Agency Listings
