Brand: Altronix
|
SKU:
10077597

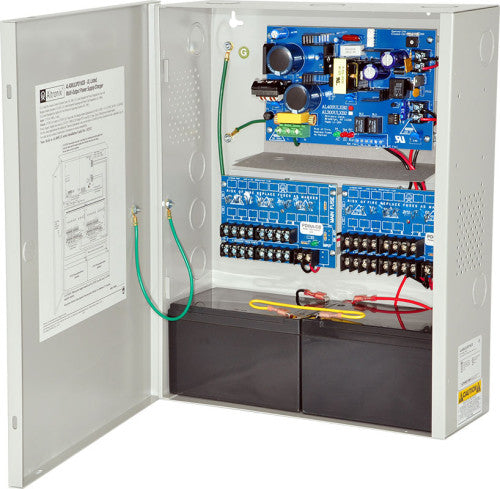

Altronix AL400XPD16CB220 | Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC @ 4A, 220VAC, BC400 Enclosure
Regular price
$339.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL400XPD16CB220 | Power Supply Charger, 16 PTC Class 2 Out...
Regular price
$339.48
Unit price
Description
Description
Altronix AL400XPD16CB220 | Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC @ 4A, 220VAC, BC400 Enclosure
Input fuse rated @ 3.5A/250V.
12VDC @ 4A or 24VDC @ 3A supply current.
Sixteen (16) PTC protected outputs (auto-resettable).
Outputs are rated @ 2.5A.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Automatic switch over to stand-by battery when AC fails.
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Storage - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
24VDC: 37 BTU/Hr.
System AC input VA requirement: 330VA.
Input
Nominal 220VAC (range 198VAC - 256VAC), 50/60Hz, 1.5A.Input fuse rated @ 3.5A/250V.
Output
12VDC or 24VDC selectable output.12VDC @ 4A or 24VDC @ 3A supply current.
Sixteen (16) PTC protected outputs (auto-resettable).
Outputs are rated @ 2.5A.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.Automatic switch over to stand-by battery when AC fails.
Supervision
AC fail supervision (form "C" contacts).Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.Temperature
Operating 0° C to 49° C (32° F to 120° F).Storage - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 25 BTU/Hr.24VDC: 37 BTU/Hr.
System AC input VA requirement: 330VA.
Overview
- AL400XPD16CB220 is a multi-output power supply/charger that converts a nominal 220VAC 50/60Hz input into sixteen (16) 12VDC or 24VDC outputs.
Specifications
Specifications
Altronix - AL400XPD16CB220 - Overview
- AL400XPD16CB220 is a multi-output power supply/charger that converts a nominal 220VAC 50/60Hz input into sixteen (16) 12VDC or 24VDC outputs.
Altronix - AL400XPD16CB220 - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - AL400XPD16CB220 - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | AL400XPD16CB220 |
| Item Description | Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC @ 4A, 220VAC, BC400 Enclosure |
| Agency Listings | CE Compliant |
| Input Voltage | 220V Ac |
| Battery Charging | Battery Charging Circuit |
| Product Type | Boxed Power Supply |
| Battery Type Req | Sealed Lead Acid Or Gel |
| Sales Category | Power Supply |
| Output Voltage | Selectable 12 Or 24 Volts Dc |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 8.85 Lbs. |
| (4.01 kg). | Shipping Weight: |
| 11.15 Lbs. | (5.1 kg). |
