Brand: Altronix
|
SKU:
10216244

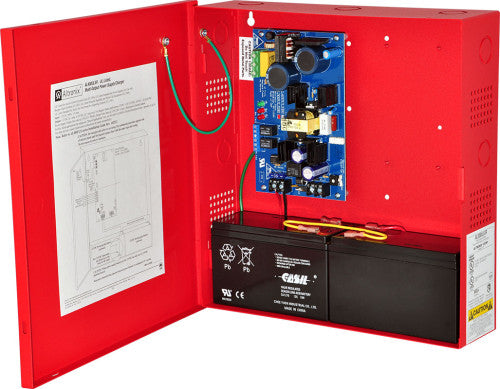

Altronix AL400XR220 | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 4A, 220VAC, Red BC300 Enclosure
Regular price
$259.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL400XR220 | Power Supply Charger, Single Class 2 Output, ...
Regular price
$259.39
Unit price
Description
Description
Altronix AL400XR220 | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 4A, 220VAC, Red BC300 Enclosure
AL400XR220 is a power supply/charger that converts a nominal 220VAC 50/60Hz input into a single 12VDC or 24VDC output.
AL400XR220 is a power supply/charger that converts a nominal 220VAC 50/60Hz input into a single 12VDC or 24VDC output.
Altronix - AL400XR220 - Features and Specifications
- INPUT
- Nominal 220VAC (range 198VAC - 256VAC), 50/60Hz, 1.5A.
- Input fuse rated @ 3.5A/250V.
- OUTPUT
- 12VDC or 24VDC selectable output.
- 12VDC @ 4A or 24VDC @ 3A supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Specifications
Specifications
Altronix - AL400XR220 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - AL400XR220 - Visual Indicators
- AC input and DC output LED indicators.
Altronix - AL400XR220 - Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 25 BTU/Hr.
- 24VDC: 37 BTU/Hr.
- System AC input VA requirement: 330VA.
Altronix - AL400XR220 - Specifications
| Sales Category | POWER SUPPLY |
|---|---|
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - AL400XR220 - Weights (approximate)
| Product Weight: | 8.5 Lbs. (3.86 kg). |
|---|---|
| Shipping Weight | 9.4 Lbs. (4.26 kg). |
