Description
Description
Altronix AL600PD4220 | Power Supply Charger, 4 Fused Outputs, 12/24VDC @ 6A, 220VAC, BC300 Enclosure
AL600PD4220 is a multi-output power supply/charger that converts a nominal 220VAC, 50/60Hz input into four (4) 12VDC or 24VDC outputs.
AL600PD4220 is a multi-output power supply/charger that converts a nominal 220VAC, 50/60Hz input into four (4) 12VDC or 24VDC outputs.
Altronix - AL600PD4220 - Features and Specifications
- INPUT
- Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.5A.
- OUTPUT
- 12VDC or 24VDC selectable output.
- 6A continuous supply current.
- Four (4) fuse protected outputs.
- Output fuses are rated @ 15A/32V.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Specifications
Specifications

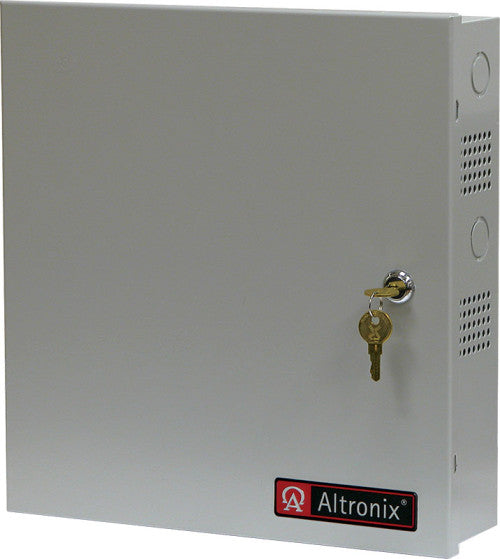

Altronix - AL600PD4220 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - AL600PD4220 - Visual Indicators
- AC input, DC output and BAT trouble.
Altronix - AL600PD4220 - Temperature
- Operating 0 to 49° C (32 to 120° F ).
- Storage - 20 to 70° C ( - 4 to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.):
- 12VDC or 12VAC: 37 BTU/Hr.
- 24VDC or 24VAC: 74 BTU/Hr.
- System AC input VA requirement: 330VA.
Altronix - AL600PD4220 - Specifications
| UNSPSC Code | 43211700 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - AL600PD4220 - Weights (approximate)
| Product Weight: | 7.2 Lbs. (3.27 kg). |
|---|---|
| Shipping Weight | 9.05 Lbs. (4.1 kg). |
