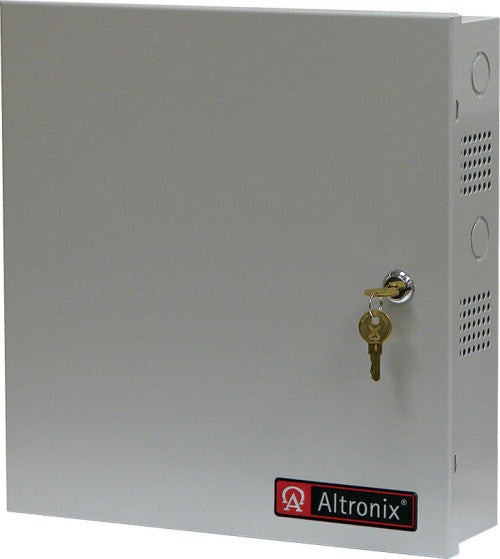

Altronix AL600UL3 | Power Supply Charger, 3 PTC Class 2 Outputs, 5/12/24VDC @ 3A, 115VAC, BC300 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/7AH Batteries.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.

Input

• Input 115VAC, 60Hz, 3.5A.

Output

• 5VDC, 12VDC, 24VDC simultaneous outputs.
• 5VDC @ 1.75A continuous supply current.
• 12VDC @ 1.75A continuous supply current.
• 24VDC @ 3A continuous supply current.
• Two (2) Class 2 Rated PTC protected power limited outputs (5VDC and 12VDC outputs) and one (1) PTC protected output.
• Outputs are rated @ 2.5A.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

Visual Indicators

• AC input and DC output LED indicators.

Weights (approximate)

Agency Listings
