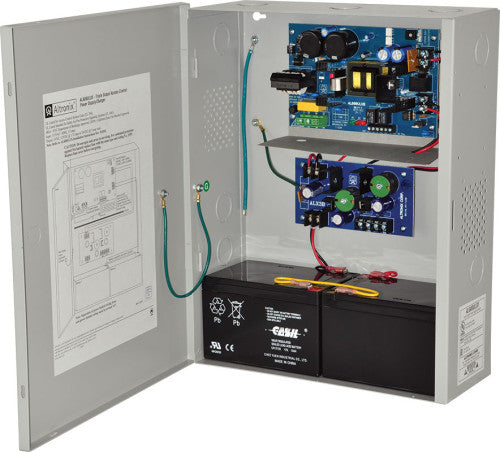

Altronix AL600UL3X | Power Supply Charger, 3 PTC Class 2 Outputs, 5/12/24VDC @ 3A, 115VAC, BC400 Enclosure

$548.01

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix AL600UL3X triple output power supply/charger is designed for use with access control systems and accessories. It converts a 115VAC / 60Hz input into three (3) individually PTC protected 5VDC, 12VDC and 24VDC regulated outputs.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to two (2) 12VDC/12AH Batteries.
Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
1.125" and 1.375" combination knockouts.

Input

Input 115VAC, 60Hz, 3.5A.

Output

5VDC, 12VDC, 24VDC simultaneous outputs.
5VDC @ 1.75A continuous supply current.
12VDC @ 1.75A continuous supply current.
24VDC @ 3A continuous supply current.
Two (2) Class 2 Rated PTC protected power limited outputs (5VDC and 12VDC outputs) and one (1) PTC protected output.
Outputs are rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.

Supervision

AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).

Visual Indicators

AC input and DC output LED indicators.

Weights (approximate)

Product Weight	9.8 Lbs. (4.45 kg).
Shipping Weight	11.1 Lbs. (5.03 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1606
cUL Listed For: Power Supplies for Fire Protective Signaling Systems (UL1481)	https://iq.ulprospector.com/en/profile?e=153662
