Brand: Altronix | SKU: 384833

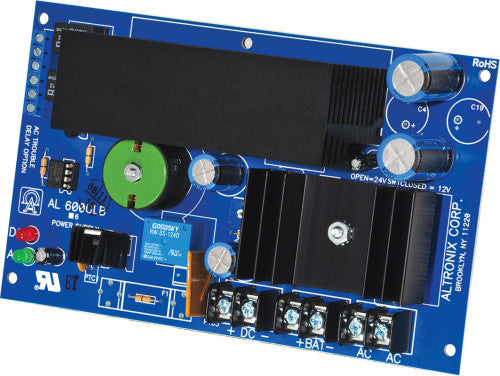

Altronix AL600ULB | Power Supply Charger, Single Output, 12/24VDC @ 6A, Input 28VAC, Board

$186.23

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix AL600ULB UL Recognized power supply/charger converts a 28VAC/200VA input into a single 12VDC or 24VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision.

Specifications

Dimensions (approximate)

4.3"W x 7.1"L x 2.3"H (109.22 mm W x 180.34 mm L x 58.42 mm H).

Input

Input two (2) 28VAC/100VA, 1A transformers.

Output

12VDC or 24VDC selectable output.
6A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.

Supervision

AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).

Visual Indicators

AC input and DC output LED indicators.

Weights (approximate)

Product Weight	1.17 Lbs. (0.53 kg).
Shipping Weight	1.25 Lbs. (0.57 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1639
Power Supplies for Fire Protective Signaling Systems (UL1481)	https://iq.ulprospector.com/en/profile?e=153687

Documents and Downloads
