Brand: Altronix
|
SKU:
9823600
Altronix AL600ULPD8CBR | Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC @ 6A, 115VAC, Red BC300 Enclosure
Regular price
$375.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL600ULPD8CBR | Power Supply Charger, 8 PTC Class 2 Output...
Regular price
$375.18
Unit price
Description
Description
Altronix AL600ULPD8CBR | Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC @ 6A, 115VAC, Red BC300 Enclosure
AL600ULPD8CBR is a multi-output power supply/charger that converts a 115VAC, 60Hz input into eight (8) 12VDC or 24VDC Class 2 Rated power-limited outputs.
AL600ULPD8CBR is a multi-output power supply/charger that converts a 115VAC, 60Hz input into eight (8) 12VDC or 24VDC Class 2 Rated power-limited outputs.
Altronix - AL600ULPD8CBR - Features and Specifications
- INPUT
- Input 115VAC, 60Hz, 3.5A.
- OUTPUT
- 12VDC or 24VDC selectable output.
- 6A continuous supply current.
- Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Specifications
Specifications

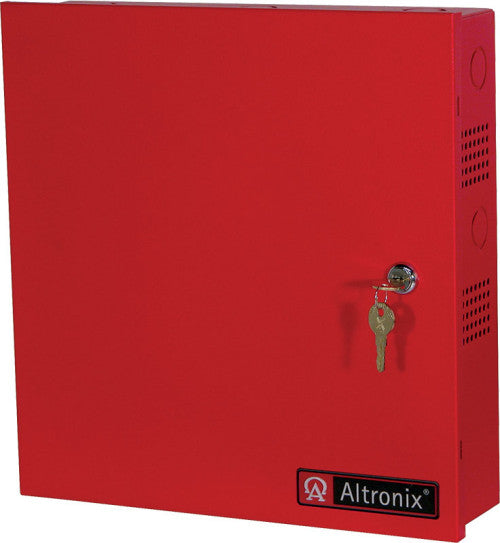

Altronix - AL600ULPD8CBR - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - AL600ULPD8CBR - Visual Indicators
- AC input and DC output LED indicators.
Altronix - AL600ULPD8CBR - Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 12VDC: 37 BTU/Hr.
- 24VDC: 74 BTU/Hr.
- System AC input VA requirement: 402.5VA.
Altronix - AL600ULPD8CBR - Specifications
| UNSPSC Code | 39120000 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - AL600ULPD8CBR - Weights (approximate)
| Product Weight: | 7.3 Lbs. (3.31 kg). |
|---|---|
| Shipping Weight | 9.15 Lbs. (4.15 kg). |
