Brand: Altronix
|
SKU:
373255

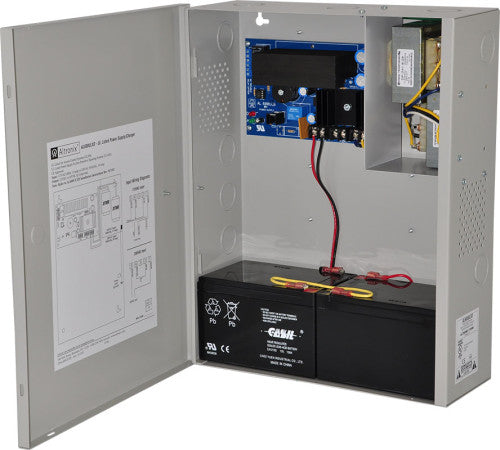

Altronix AL600ULXD | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 6A, 115/230VAC, BC400 Enclosure
Regular price
$443.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL600ULXD | Power Supply Charger, Single Class 2 Output, 1...
Regular price
$443.74
Unit price
Description
Description
Altronix AL600ULXD power supply/charger converts a 115VAC 60Hz or 230VAC 50/60Hz input into a single 12VDC or 24VDC non power-limited output.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/12AH Batteries.
- Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
- 1.125" and 1.375" combination knockouts.
Input
- Input 115VAC / 60Hz, 3.5A or 230VAC 50/60Hz, 1.8A.
Output
- 12VDC or 24VDC selectable output.
- 6A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 12.6 Lbs. (5.75 kg). |
|---|---|
| Shipping Weight | 13.9 Lbs. (6.3 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1606 |
|---|---|
| Power Supplies for Fire Protective Signaling Systems (UL1481) | https://iq.ulprospector.com/en/profile?e=153662 |
Documents and Downloads
Documents and Downloads
- Altronix AL600ULXD Data Sheet
- Altronix AL600ULXD Data Sheet
- Altronix AL600ULXD Fichas Tecnicas
- Altronix AL600ULXD Installation Instructions
- Altronix AL600ULXD Altronix_AL600ULXD_Power_Supply_Installation_Instructions_prior_to_Apr._23,_2015.pdf
- Altronix AL600ULXDGuia de Instalacion
- Altronix AL600ULXD CAD Drawing
- Altronix AL600ULXD Revit File
- Altronix AL600ULXD Lifetime Warranty
