Brand: Altronix
|
SKU:
10216241

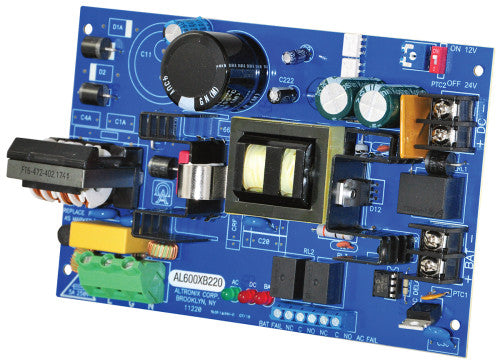

Altronix AL600XB220 | Power Supply Charger, 12/24VDC @ 6A, 220VAC, Board
Regular price
$514.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL600XB220 | Power Supply Charger, 12/24VDC @ 6A, 220VAC, ...
Regular price
$514.95
Unit price
Description
Description
AL600XB220 is a power supply/charger that converts a nominal 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a single 12VDC or 24VDC output.
Specifications
Specifications
Dimensions (approximate)
- 4.5"W x 7.8"L x 2.6"H (114.3 mm W x 198.12 mm L x 66.04 mm H).
Input
- Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.5A.
- Input fuse rated @ 5A/250V.
Output
- 12VDC or 24VDC selectable output.
- 6A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Visual Indicators
- AC input, DC output and BAT trouble.
Weights (approximate)
| Product Weight | 1.55 Lbs. (0.7 kg). |
|---|---|
| Shipping Weight | 1.75 Lbs. (0.79 kg). |
