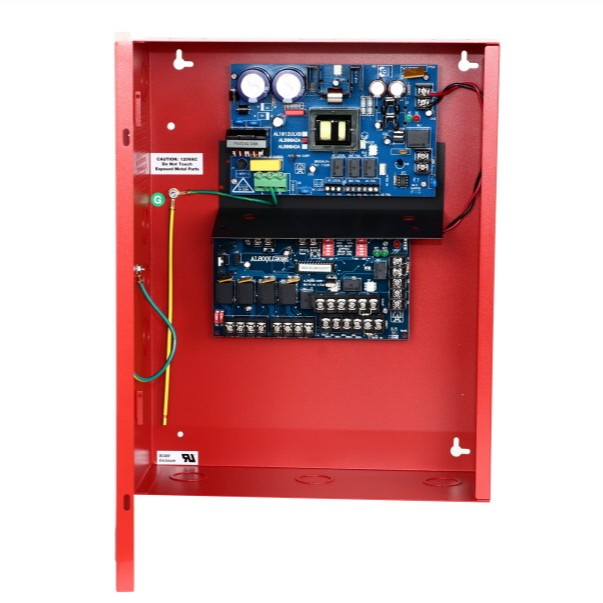

Altronix AL602ULADA | NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC 6.5A, 120VAC, Red BC400 Enclosure
Altronix AL602ULADA is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories.
Altronix - AL602ULADA - Features
- 2-wire horn/strobe Sync mode allows audible notification appliances (horns) and visual notification appliances (strobes) to be silenced/deactivated at the same time
- Sync protocols include Potter/Amseco, Gentex, System Sensor, and CooperWheelock
- Temporal Code 3, Steady Mode, Input to Output Follower Mode (maintains synchronization of notification appliances circuit)
- Compatible with 12VDC or 24VDC fire panels
- Output loop supervision steered to Input 1 or Input 2
- Signal circuit trouble memory (helps identify intermittent loop problems)
- Common trouble input and output for external trouble signals tie-in
- Ground fault detection
Specifications
Specifications
Altronix - AL602ULADA - Specifications
| Input Voltage | 120VAC, 60Hz, 4A |
|---|---|
| Output Voltage | 24VDC power-limited outputs |
| Battery Charging Type | Sealed lead acid or gel type |
| Supervision AC Failure | Form "C" contacts |
| Indicators (LED) AC Power (Green) | Input voltage is present |
| Dimensions (H x W x D) | 15.5" x 12" x 4.5" (393.7mm x 304.8mm x 114.3mm) |
| Weight | 9.6 lb. (4.35 kg) |
| Operating Temperature | 0ºC to 49ºC (32ºF to 120ºF) |
| BTU/Hr (approx.) | 31 BTU/Hr. |
