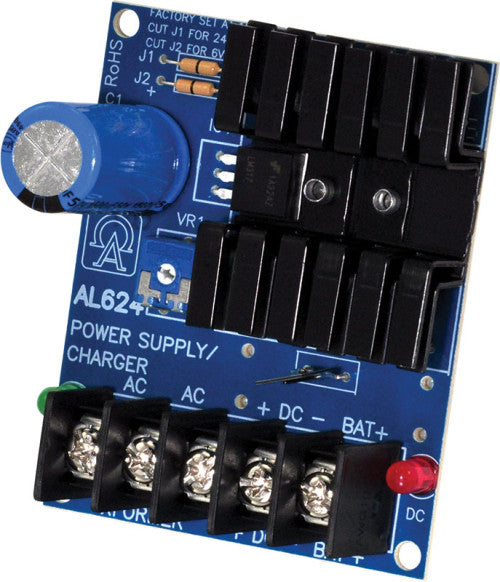

Altronix AL624 | Linear Power Supply Charger, Single Class 2 Output, 6/12/24VDC @ 1.2A, 16 to 24VAC, Board

$28.72

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix AL624 power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.

Specifications

Dimensions (approximate)

2.5"W x 3"L x 1.5"H (63.5 mm W x 76.2 mm L x 38.1 mm H).

Input

16VAC to 24VAC, 20VA to 40VA.

Output

Switch selectable 6VDC-12VDC-24VDC.
6VDC or 12VDC @ 1.2A supply current or 24VDC @ 0.75A supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
PTC battery protection.

Visual Indicators

AC input and DC output LED indicators.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr.:
6VDC: 4 BTU/Hr.
12VDC: 7 BTU/Hr.
24VDC: 9 BTU/Hr.
System AC input VA requirement:
16.5VAC/20VA: 138. 16.5VAC/40VA: 276.
24VAC/20VA: 92. 24VAC/40VA: 192.05.

Weights (approximate)

Product Weight	0.1 Lbs. (0.05 kg).
Shipping Weight	0.15 Lbs. (0.07 kg).
