Description
Description
AL624-24C power supply/charger kit has a wide range of applications including: access control, security and CCTV system accessories that require additional power.
Main Features

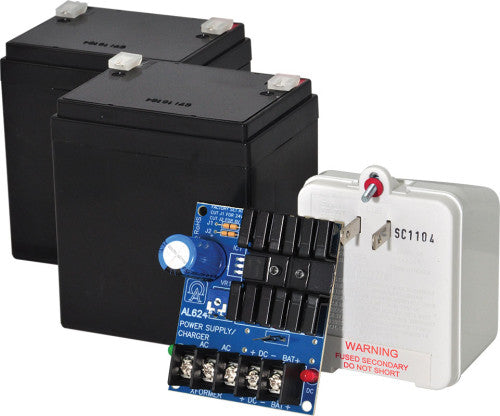

- Power supply/charger with two (2) BT124 (12VDC/4AH) and TP2440 plug-in transformer (24VAC/40VA).
Specifications
Specifications
Dimensions (approximate)
- 2.5"W x 3"L x 1.5"H (63.5 mm W x 76.2 mm L x 38.1 mm H).
Input
- 115VAC, 60 Hz 1.67A.
Output
- 24VDC output.
- 24VDC @ 0.75A supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- PTC battery protection.
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 6.3 Lbs. (2.76 kg). |
|---|---|
| Shipping Weight | 7.1 Lbs. (3.22 kg). |
