Brand: Altronix
|
SKU:
552852

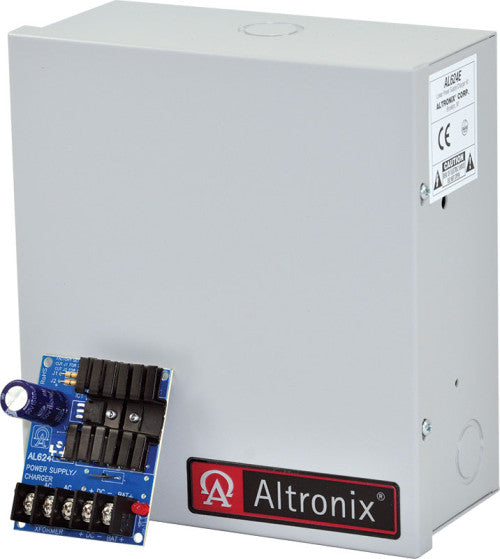

Altronix AL624E | Linear Power Supply Charger, Single Class 2 Output, 6/12/24VDC @ 1.2A, 16 to 24VAC, BC100, Enclosure
Regular price
$109.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL624E | Linear Power Supply Charger, Single Class 2 Outpu...
Regular price
$109.32
Unit price
Description
Description
Altronix AL624E power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security and CCTV system accessories that require additional power.
Main Features
- Power supply/charger with enclosure.
- Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/4AH Batteries.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 16VAC to 24VAC, 20VA to 40VA.
Output
- Switch selectable 6VDC-12VDC-24VDC.
- 6VDC or 12VDC @ 1.2A supply current or 24VDC @ 0.75A supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- PTC battery protection.
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 3.6 Lbs. (1.6 kg). |
|---|---|
| Shipping Weight | 4.1 Lbs. (1.9 kg). |
