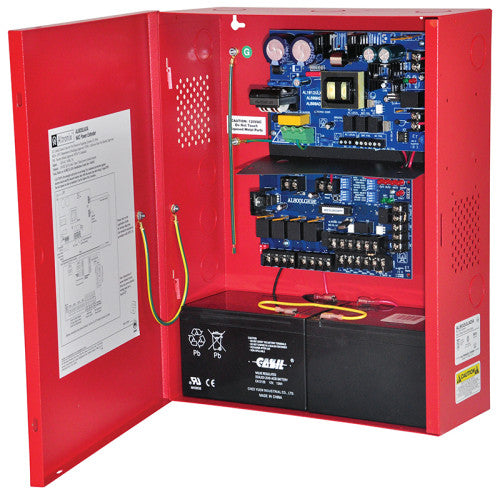

Altronix AL802ADA220 | NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC @ 8A, 220VAC, Red BC400 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
• 1.125" and 1.375" combination knockouts.

Input

• Nominal 220VAC (working range 198VAC - 256VAC), 50/60 Hz, 1.5A.
• Two (2) Class A, Style Z or two (2) Class B, Style W, X, Y FACP inputs.
• Two (2) NC dry contact trigger inputs.

Output

• 24VDC @ 8A max total alarm current.
• 2.5A max current per output.
• Separate 1.0A auxiliary output
• Programmable supervised indicating circuit outputs:
• Four (4) Class B, Style W, X, Y or Two (2) Class A, Style Z or One (1) Class A, Style Z and Two (2) Class B, Style W, X, Y (see Application Guide).
• Thermal and short circuit protection with auto reset.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switchover to stand-by battery when AC Fails.
• Zero voltage drop when switching over to battery backup.

Supervision

• AC fail supervision (form "C" contact, 1A/28VDC).
• Factory set for 30 seconds with optional 2.5 to 3 hour delay setting (field selectable).
• Instant local AC trouble reporting relay (form "C" contact, 1A/28VDC).
• Battery presence and low battery supervision (form "C" contact, 1A/28VDC).

Visual Indicators

• Input and output status LED indicators.

Weights (approximate)
