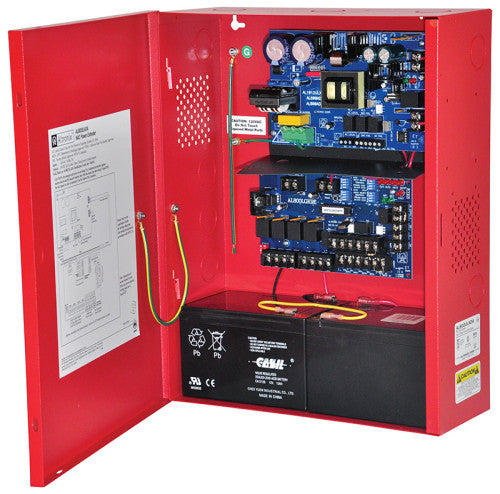

Altronix AL802ULADA | NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC @ 8A, 120VAC, Red BC400 Enclosure
Regular price
$568.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL802ULADA | NAC Power Supply, 2 Class A or 4 Class B Outp...
Regular price
$568.35
Unit price
Description
Description
Altronix AL802ULADA is an extremely cost effective voltage regulated remote NAC Power
Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/12AH Batteries.
- Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
- 1.125" and 1.375" combination knockouts.
Input
- Voltage:
- 120VAC, 60Hz, 4A.
- Two (2) Class A or two (2) Class B inputs.
- Two (2) NC dry contact trigger inputs.
- Input Ratings (INP1 and INP2):
- 8-30VDC 6.5mA max from FACP.
- 12V 6.5mA, 24V 6.5mA from FACP.
Output
- Voltage:
- 24VDC power-limited outputs.
- Current:
- 8A max. total alarm current.
- 2.5A max. current per output.
- Auxiliary:
- 1A.
- Other:
- Thermal and short circuit protection with auto reset.
- Filtered and regulated outputs.
- Programmable Supervised Indicating Circuit Outputs:
- Four (4) Class B, or TWO (2) Class A, or
- One (1) Class A and Two (2) Class B.
Back-up Battery (not included)
- Type: Sealed lead acid or gel type.
- Failover: Upon AC loss, instantaneous.
Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
Indicators (LED)
- AC Power (Green): Input voltage is present.
- DC Output (Red): Powered.
- Logic Board (Red and Green): Output status.
Weights (approximate)
| Product Weight | 12 Lbs. (5.44 kg). |
|---|---|
| Shipping Weight | 13.3 Lbs. (6.03 kg). |
Agency Listings
| UL Listed For: Control Units and Accessories for Fire Alarm Systems (UL864) | https://iq.ulprospector.com/en/profile?e=152861 |
|---|---|
| CSFM - California State Fire Marshal Approved | https://www.altronix.com/library/pdf/csfm_files/1335-0107.PDF |
Documents and Downloads
Documents and Downloads
- Altronix AL802ULADA Data Sheet
- Altronix AL802ULADA Data Sheet
- Altronix AL802ULADA Installation Instructions
- Altronix AL802ULADA Application Guide prior to Jul. 1, 2018
- Altronix AL802ULADA Altronix_AL802ULADA_NAC_Power_Supply_Application_Guide.pdf
- Altronix AL802ULADAInstallation Instructions prior to Jul. 1, 2018
- Altronix AL802ULADA Guia de aplicacion
- Altronix AL802ULADA CAD Drawing
- Altronix AL802ULADA Revit File
- Altronix AL802ULADA Lifetime Warranty
