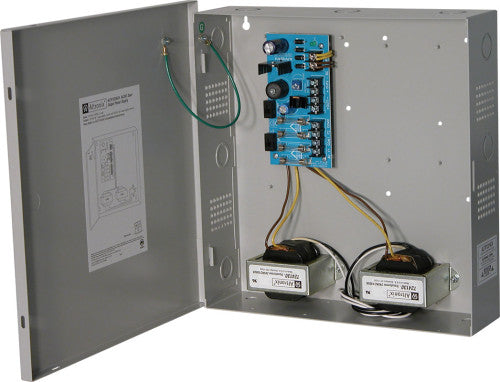

Altronix ALTV1224C4 | CCTV Power Supply, 4 Outputs, (2 @ 12VDC and 2 @ 24VAC) @ 6A, 115VAC, BC300 Enclosure

$297.53

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

ALTV1224C4 AC/DC Dual Output Power Supply is designed to provide both 12VDC and 24VAC outputs where a combination of both AC and DC outputs are required.

Main Features

AC/DC power LED indicators.
Power ON/OFF switch.
Unit maintains camera synchronization.
Ease of installation saves time & eliminates costly labor.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC 50/60 Hz, 1.52A.

Output

Four (4) individually fused outputs.
Two (2) fuse protected outputs @ 12VDC.
Two (2) fuse protected outputs @ 24VAC.
6A total output current.
2A supply current @ 12VDC.
4A supply current @ 24VAC.
DC output fuses are rated @ 1A.
AC output fuses are rated @ 3.5A.
Filtered and electronically regulated outputs (DC outputs).
Surge suppression (AC outputs).

Temperature

Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 72 BTU/Hr.
System AC input VA requirement: 174.8VA.

Weights (approximate)

Product Weight	14.5 Lbs. (6.58 kg).
Shipping Weight	15.4 Lbs. (6.99 kg).
