Brand: Altronix
|
SKU:
715570

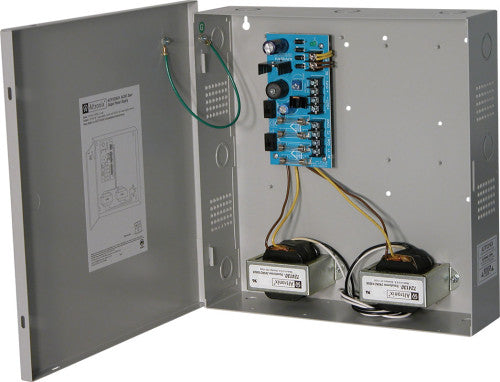

Altronix ALTV1224C4220 | CCTV Power Supply, 4 Outputs, (2 @ 12VDC and 2 @ 24VAC) @ 6A, 115VAC, BC300 Enclosure
Regular price
$306.42
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV1224C4220 | CCTV Power Supply, 4 Outputs, (2 @ 12VDC a...
Regular price
$306.42
Unit price
Description
Description
ALTV1224C4220 AC/DC Dual Output Power Supply is designed to provide both 12VDC and 24VAC outputs where a combination of both AC and DC outputs are required.
Main Features
- AC/DC power LED indicators.
- Power ON/OFF switch.
- Unit maintains camera synchronization.
- Ease of installation saves time and eliminates costly labor.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 220VAC 50/60 Hz, 1.0A.
Output
- Four (4) individually fused outputs.
- Two (2) fuse protected outputs @ 12VDC.
- Two (2) fuse protected outputs @ 24VAC.
- 6A total output current.
- 2A supply current @ 12VDC.
- 4A supply current @ 24VAC.
- DC output fuses are rated @ 1A.
- AC output fuses are rated @ 3.5A.
- Filtered and electronically regulated outputs (DC outputs).
- Surge suppression (AC outputs).
Temperature
- Operating 0ºC to 49ºC (32ºF to 120ºF).
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 72 BTU/Hr.
Weights (approximate)
| Product Weight | 14.5 Lbs. (6.58 kg). |
|---|---|
| Shipping Weight | 15.4 Lbs. (6.99 kg). |
