Brand: Altronix
|
SKU:
10216266

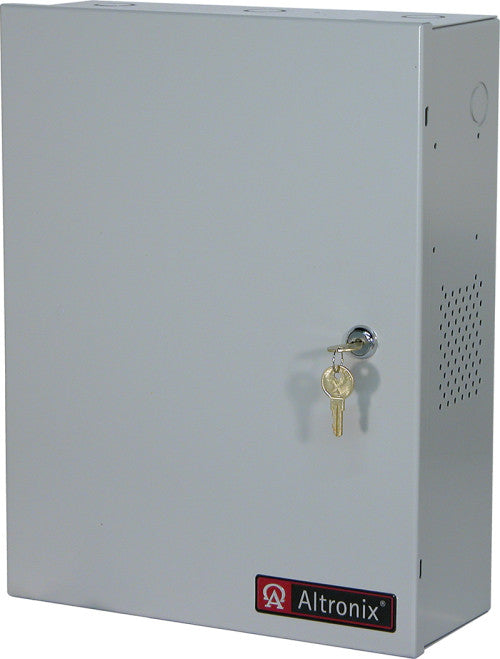

Altronix ALTV1224CCB | CCTV Power Supply, 16 PTC Outputs, (8 @ 12VDC and 8 @ 24VAC) @ 7A, 115VAC, BC400 Enclosure
Regular price
$420.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV1224CCB | CCTV Power Supply, 16 PTC Outputs, (8 @ 12VD...
Regular price
$420.40
Unit price
Description
Description
Altronix ALTV1224CCB AC/DC Dual Output Power Supply is designed to provide both 12VDC and 24VAC outputs where a combination of both AC and DC outputs are required.
Main Features
- AC/DC power LED indicators.
- Power ON/OFF switch.
- Unit maintains camera synchronization.
- Ease of installation saves time & eliminates costly labor.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
- 1.125" and 1.375" combination knockouts.
Input
- 115VAC 50/60 Hz, 1.52A.
Output
- Sixteen (16) individually PTC outputs.
- Eight (8) PTC protected outputs @ 12VDC.
- Eight (8) PTC protected outputs @ 24VAC.
- 7A total output current.
- 3.5A supply current @ 12VDC.
- 2.5A supply current @ 24VAC.
- Output PTC are rated @ 3.5A/250VAC.
- Main PTC are rated at 5A/250VAC.
- Filtered and electronically regulated outputs (DC outputs).
- Surge suppression (AC outputs).
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 64 BTU/Hr.
- System AC input VA requirement: 174.8VA.
Weights (approximate)
| Product Weight | 17.75 Lbs. (8.05 kg). |
|---|---|
| Shipping Weight | 19.05 Lbs. (8.64 kg). |
