Brand: Altronix
|
SKU:
10216301

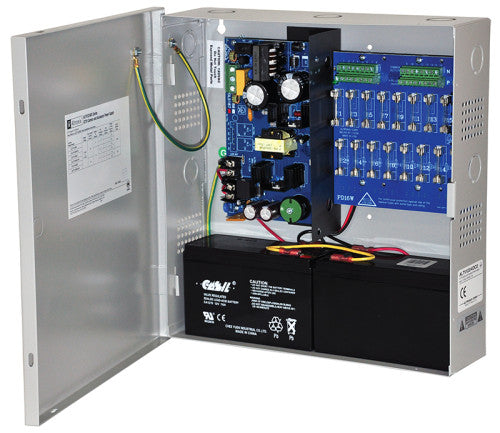

Altronix ALTV1224DC1220 | CCTV Power Supply, 16 Fused Outputs, 12/24VDC @ 4A, 220VAC, BC300 Enclosure
Regular price
$270.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV1224DC1220 | CCTV Power Supply, 16 Fused Outputs, 12/2...
Regular price
$270.82
Unit price
Description
Description
ALTV1224DC1220 is designed to power CCTV Cameras and accessories. It provides 12VDC or 24VDC distributed via sixteen (16) fuse protected outputs with a total of 4A total supply current.
Main Features
- AC input and DC output LED indicators.
- Power ON/OFF switch.
- Unit maintains camera synchronization.
- Ease of installation saves time and eliminates costly labor.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Input 220VAC (working range 198VAC-256VAC), 50/60 Hz, 0.6A.
Output
- Sixteen (16) fuse protected outputs.
- 12VDC or 24VDC.
- 4A total continuous supply current (0.25A per device, 3.5A max.).
- Outputs are rated @ 3.5A.
- Filtered and electronically regulated outputs.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.):
- 12VDC: 25 BTU/Hr.
- 24VDC: 49 BTU/Hr.
- System AC input VA requirement: 176VA.
Weights (approximate)
| Product Weight | 7.9 Lbs. (3.58 kg). |
|---|---|
| Shipping Weight | 8.8 Lbs. (3.99 kg). |
