Brand: Altronix | SKU: 231039

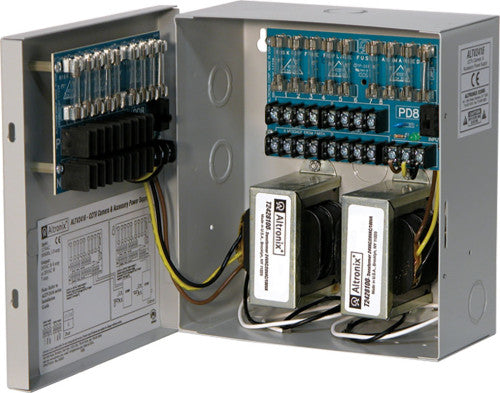

Altronix ALTV2416 | CCTV Power Supply, 16 Fused Outputs, 24/28VAC @ 8A, 115VAC, BC100 Enclosure

$261.93

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Model ALTV2416 provides 24VAC or 28VAC distributed via sixteen (16) fuse protected outputs. ALTV2416220 is a 220VAC Input version of this unit.

Main Features

Secondary fuse rated @ 10A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC, 50/60Hz, 1.9A.

Output

Sixteen (16) fuse protected outputs.
24VAC @ 8A (192VA) supply current (0.5A per device, 3.5A max.) or 28VAC @ 7A (196VA) supply current (0.438A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
24VAC: 98 BTU/Hr.
28VAC: 100 BTU/Hr.
System AC input VA requirement: 218.5VA.

Weights (approximate)

Product Weight	9.1 Lbs. (4.1 kg).
Shipping Weight	10.1 Lbs. (4.6 kg).
