Brand: Altronix
|
SKU:
10216256

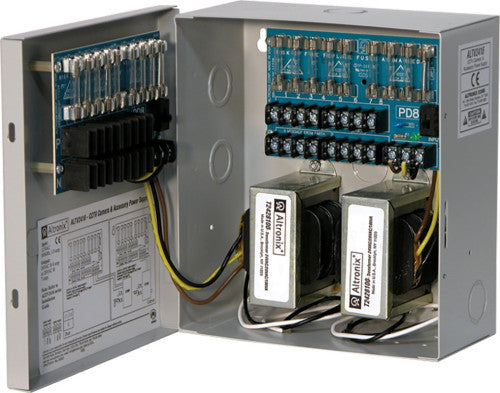

Altronix ALTV2416220 | CCTV Power Supply, 16 Fused Outputs, 24/28VAC @ 8A, 220VAC, BC100 Enclosure
Regular price
$270.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV2416220 | CCTV Power Supply, 16 Fused Outputs, 24/28VA...
Regular price
$270.82
Unit price
Description
Description
ALTV2416220 AC Wall Mount CCTV Power Supply provides 24VAC distributed via sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Main Features
- Secondary fuse rated @ 5A/250V.
- AC power LED.
- Power ON/OFF switch.
- Unit maintains camera synchronization.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 220VAC, 50/60Hz, 0.5A.
Output
- Sixteen (16) fuse protected outputs.
- 24VAC @ 8A (200VA) or 28VAC @ 7A (200VA) supply current.
- Outputs are rated @ 2.5A.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.):
- 24VDC: 98 BTU/Hr.
- 28VDC: 100 BTU/Hr.
- System AC input VA requirement: 110VA.
Weights (approximate)
| Product Weight | 9.1 Lbs. (4.13 kg). |
|---|---|
| Shipping Weight | 10.1 Lbs. (4.58 kg). |
